Manual Wheelchair for Hospitals

As the professional manufacture, we would like to provide you You can rest assured to buy customized Manual Wheelchair for Hospitals from us. We provide comprehensive OEM/ODM services, wholesale distribution, and customized development for medical rehabilitation assistive devices.

Send Inquiry

Product Description

Yuteng Medical series products: hospital manual wheelchair, care manual wheelchair, manual wheelchair products. Steel chrome-plated frame; PVC imitation leather seat back cushion; Fixed foot support; Various configurations can be customized.

Manual Wheelchair for Hospitals have obtained rigorous international certifications including FDA, CE, ISO13485, and TUV, ensuring compliance with global standards. Our wheelchairs are exported to more than 90 countries worldwide. We invite potential partners to discuss collaboration opportunities regarding product pricing, sample requests, quality assurance, technical specifications, and other relevant matters.

Manual Wheelchair for Hospitals Parameter (Specification)

Name:	parameter
Use state width (cm):	60
Width of folded state (cm):	28. 5
Seat width (cm):	43
Rear wheel diameter (cm):	61
Front wheel diameter (cm):	20
Seat height (cm):	50
Cushion depth (cm):	40
Total length (cm):	103
Total height (cm):	92
Backrest height (cm):	41
Maximum load (Kg):	120
Net weight (Kg):	16. 2
Carton LWH (cm):	81. 52976
Table/box:	1

Feature And Application

1. Frame: The frame adopts Φ22*T1.2mm iron pipe integrated welding molding, the main surface of the frame electroplating, the whole vehicle can be folded around;

2. Cross tube; The main body of the cross pipe is welded with 22*T2.0mm iron pipe and flat iron, and the double cross structure makes the structure stable and beautiful while reducing the cost;

3. Seat back cushion: double-layer black wasp shaped nylon cloth with canvas lining to reinforce high tensile strength, built-in sponge to increase ride comfort, seat cushion tube with open tube, both ends of the seat cushion directly into the whole surface of the force, to avoid the seat cushion sag and collapse after sitting for a long time, widen the leg belt, 90mm width, leg leaning more comfortable;

4. Brake: the driving wheel is equipped with a new type of iron brake, the hand-pushed pipe is Φ22*T1.2mm iron pipe, with a thick PVC hand grip, the surface is soft and more comfortable to use;

5. Armrest: with black PU short bent armrest pad, armrest can be lifted back, easy for users to move and close to the table;

6. Foot pedal: black plastic pellet foot pedal, foot pedal height adjustable and reversible, 6 adjustment gears, foot body can be rotated to the side can be quickly removed;

7. Front wheel: plastic reinforced front fork, with 8-inch PVC space wheel, axle height 38, tire width 40, outer diameter 190, gray wheel frame, black PVC smooth tire;

8. Rear wheel: European straight cylinder iron drum, with 36 spokes, fog silver aluminum frame, 24 inch black PU pattern tire, 4 claw reinforced black plastic wavy hand circle, more comfortable to use;

9. The rear of the frame is equipped with a foot device to cross the obstacle, which is convenient to tilt the car when crossing the obstacle.

Details

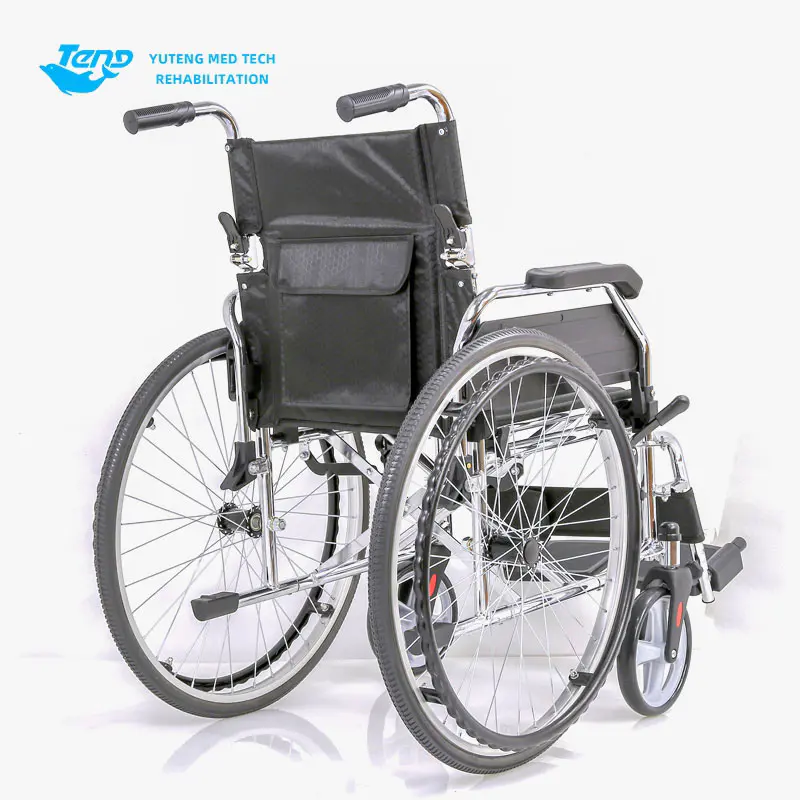

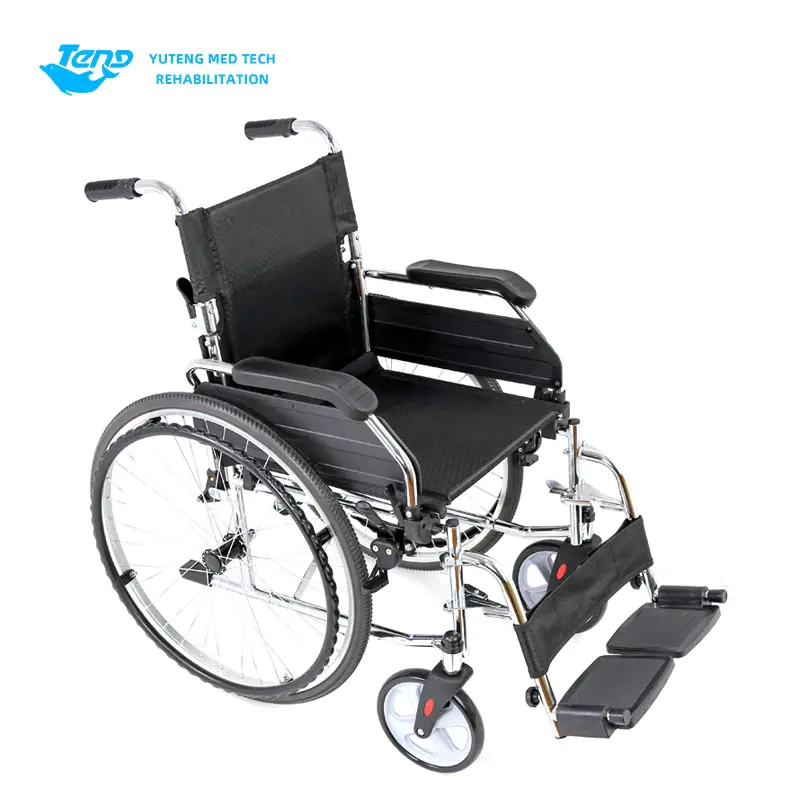

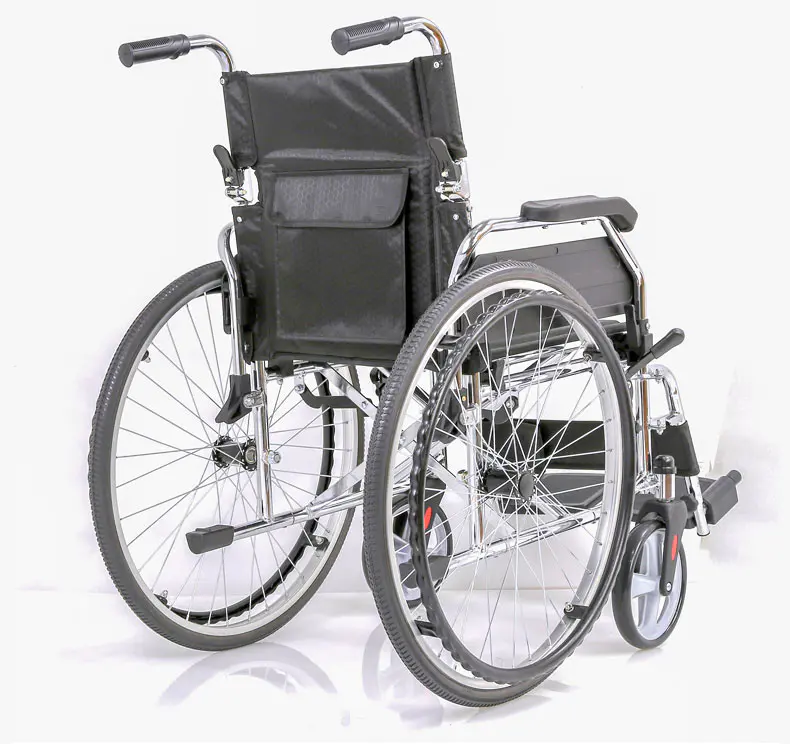

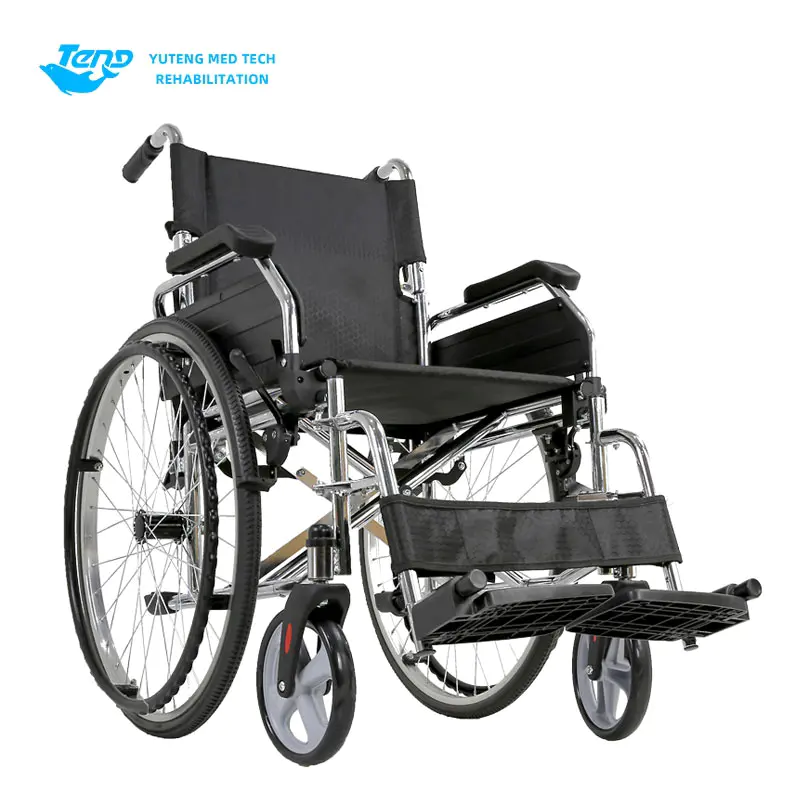

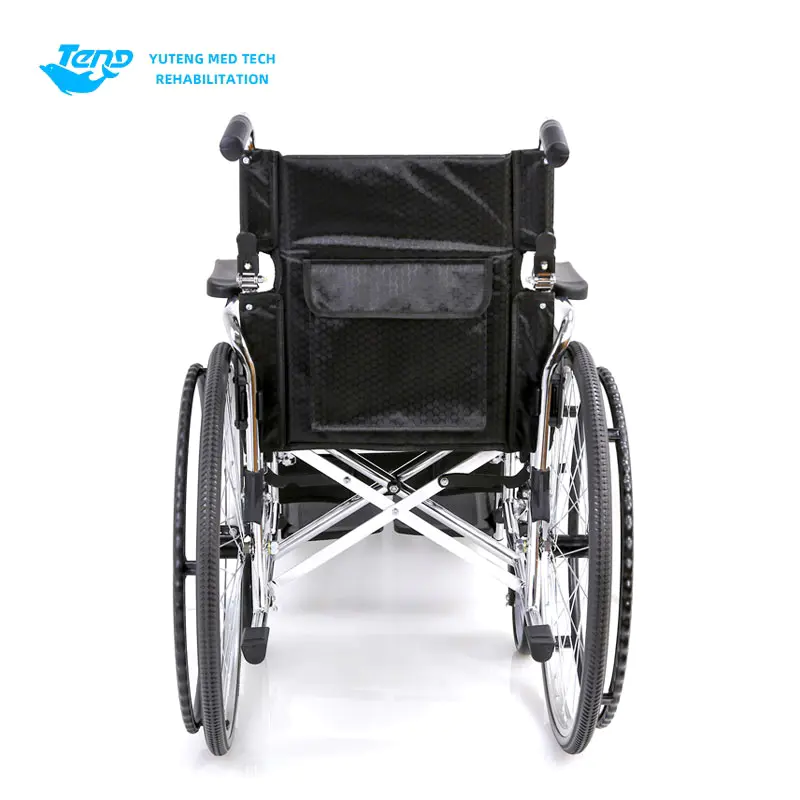

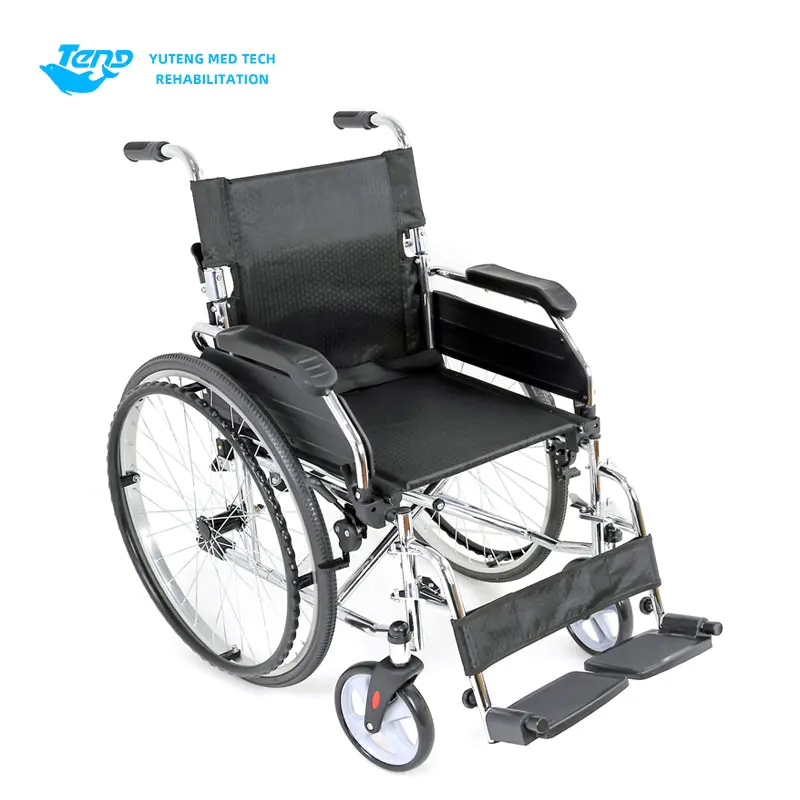

Manual Wheelchair For Hospitals
