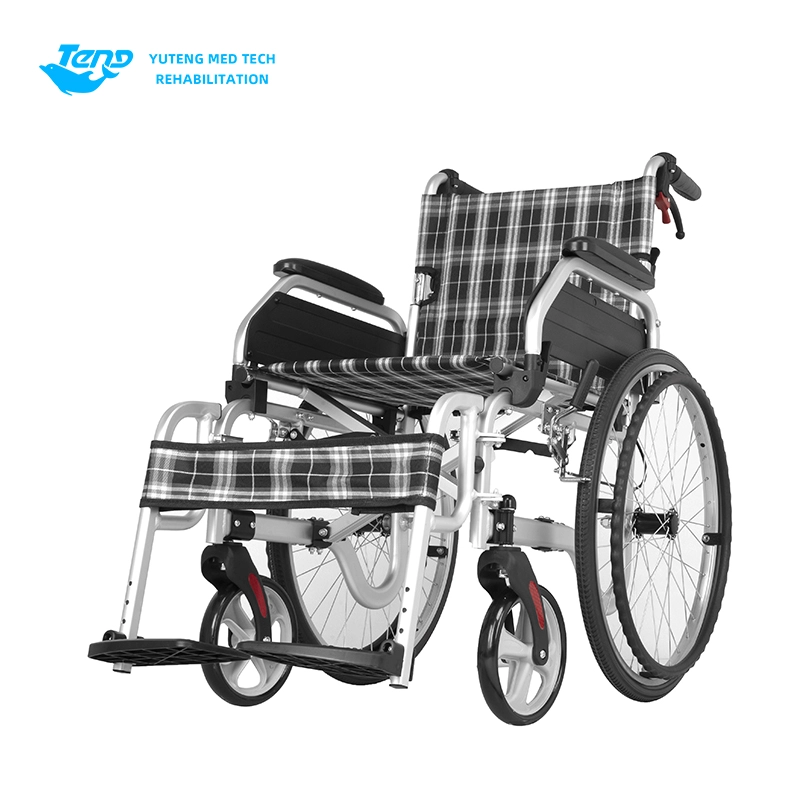

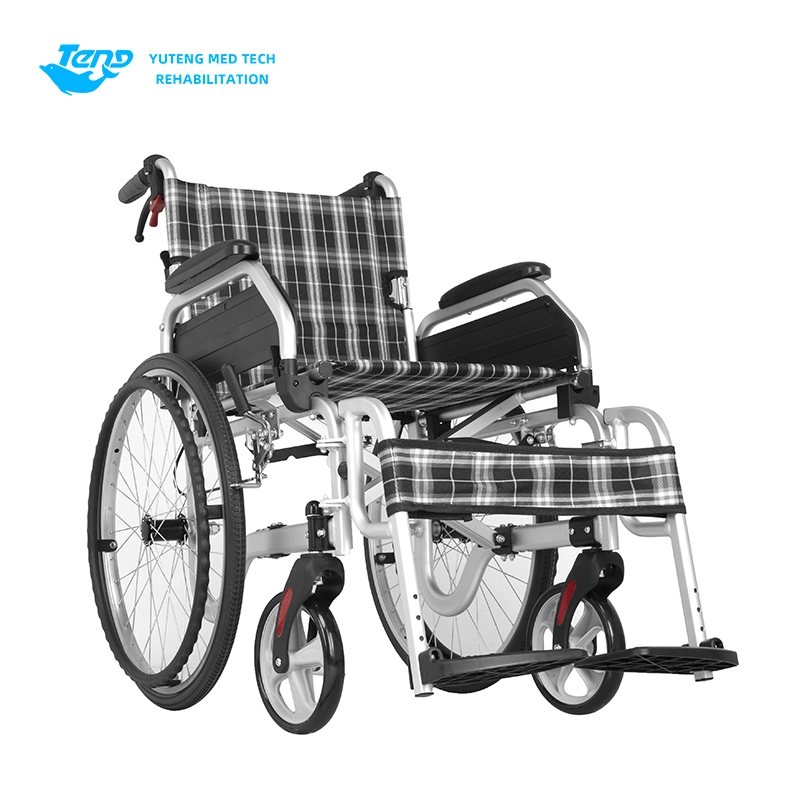

Yuteng Medical Products: The Wheelchair for the Disabled is an ultralight, foldable aluminum frame wheelchair. It features 12-inch solid PU tires with steel wheels and oxidized bright aluminum alloy handrims. The aluminum brake assembly allows for adjustable width and braking force. Additionally, it includes a 6-inch high-quality PVC wear-resistant caster wheel. The fixed handrails have a PU-coated curved surface, and the pedals are lift-enabled.

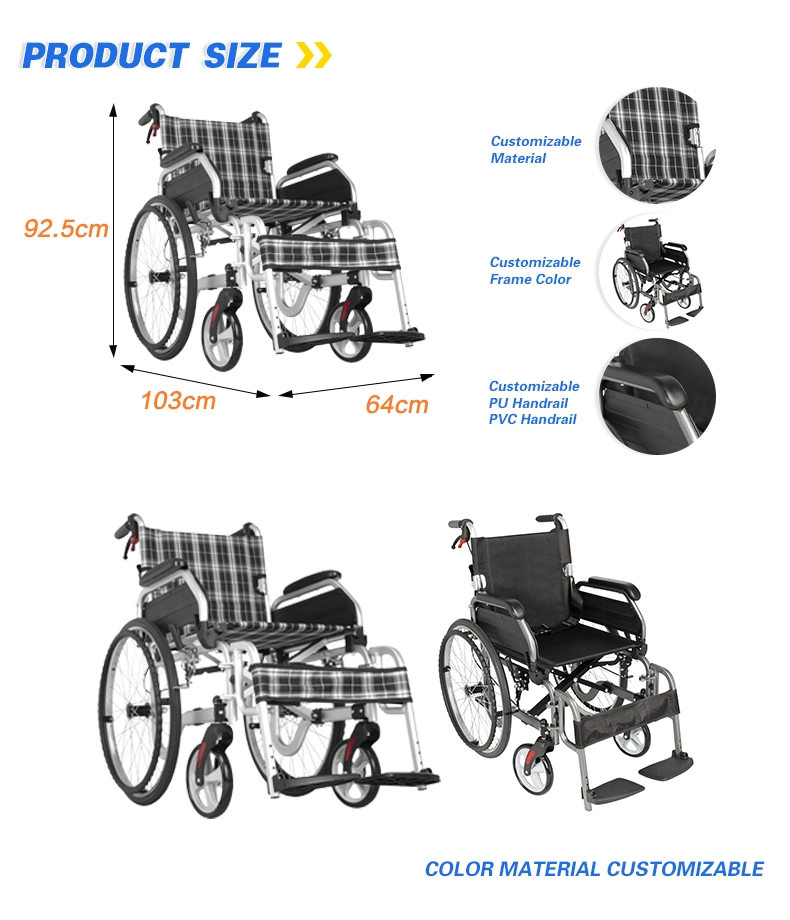

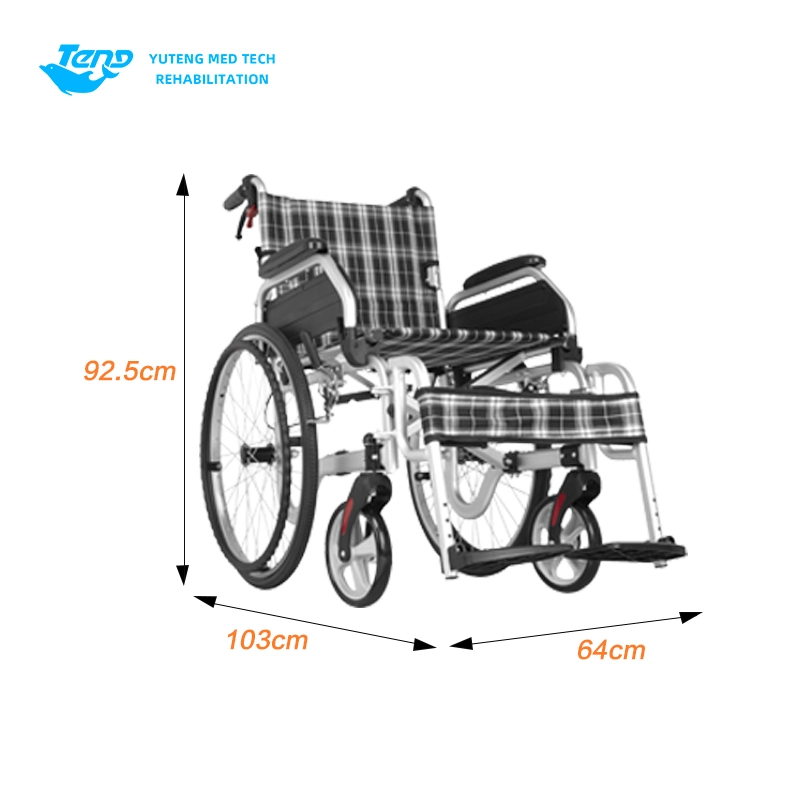

Parameter (Specification)
| Name: | parameter |
| Usage status (cm): | 63 |
| Folded state (cm): | 27 |
| Seat width (cm): | 48 |
| Rear wheel diameter (cm): | 51 |
| Front wheel diameter (cm): | 15 |
| Cushion height (cm): | 49 |
| Cushion depth (cm): | 36 |
| Total length (cm): | 100 |
| Total height (cm): | 93 |
| Backrest height (cm): |
42 Maximum load (Kg) 100 |
| Net weight (Kg): | 11. 9 |
| Carton (cm): | 80*29*75 |
| Table/box: | 1 |

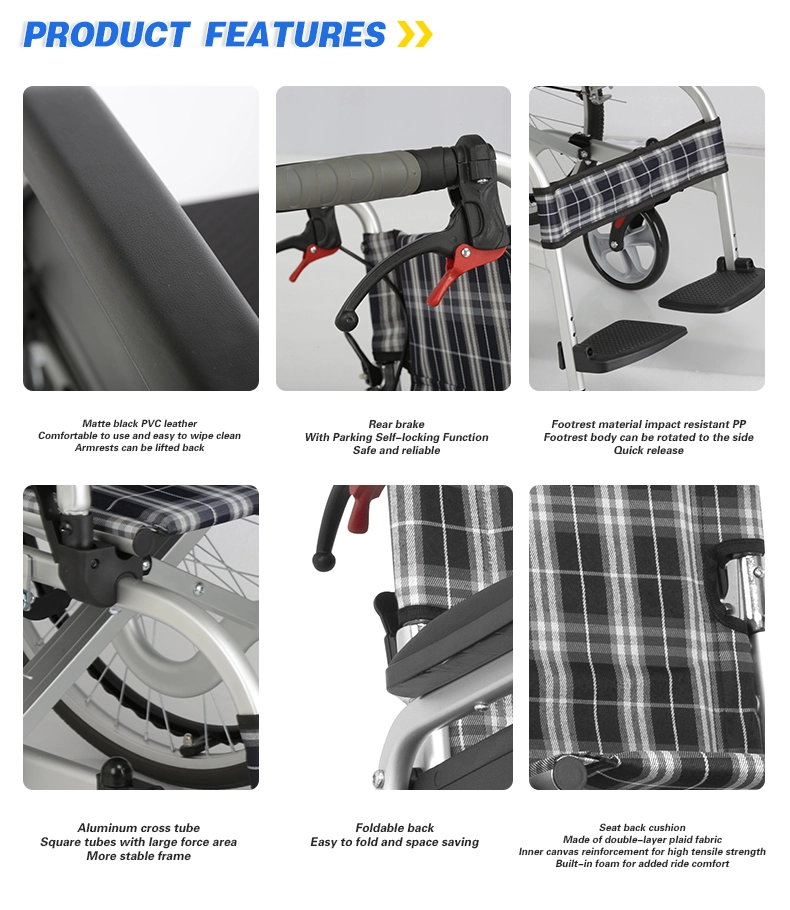

Feature And Application
1, frame: the diameter of 22*2.0 thick ultra-light aluminum alloy pipe welded, folding, double cross pipe structure, 1, surface oxidation, light weight, firm, safe, beautiful; Folding back; Foot height adjustable, can lift.
2, front wheel: The diameter of 15cm(6 inches) high-quality PVC wheel, has good wear resistance;
3, aluminum alloy front fork, surface oxidation; Flexible rotation;
4, rear wheel: The diameter of 51cm(20 inches) steel wheel PU tire, no inflation, wear and vibration absorption performance is good;
5, seat cushion: Oxford cloth + breathable mesh cloth, there are canvas and metal guard reinforced, as well as sponge to increase the ride comfort;
6, brake: double brake, rear care brake, brake handle with parking self-locking function + elbow brake, safe and reliable;
7, armrest: fixed armrest, with PU bent armrest, plastic protection board;
8, foot support: can lift foot support, with die-cast aluminum alloy foot pedal and mesh cloth leg belt, foot pedal height can be adjusted and reversible.
