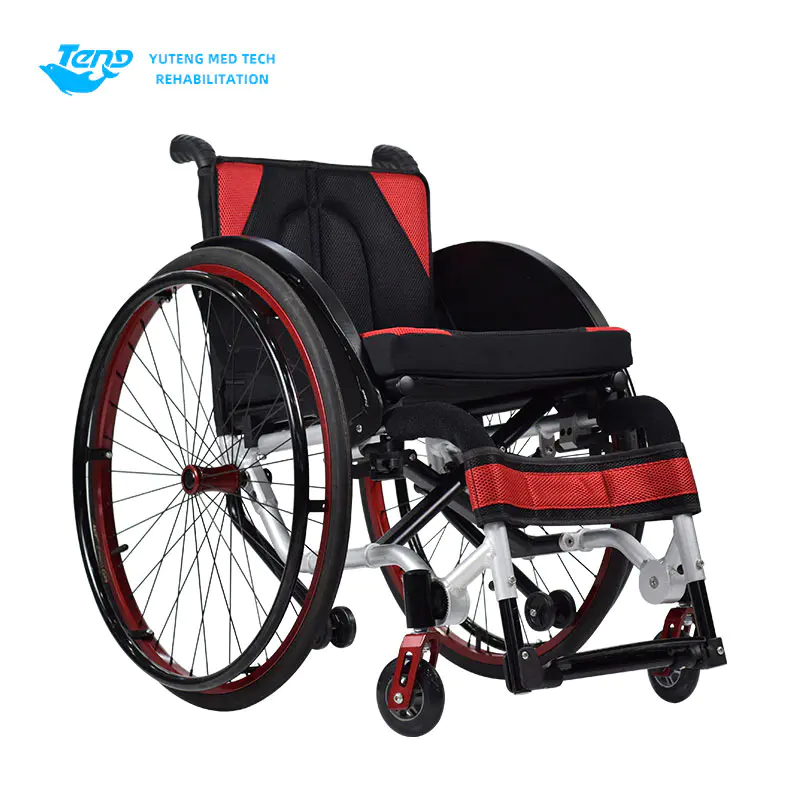

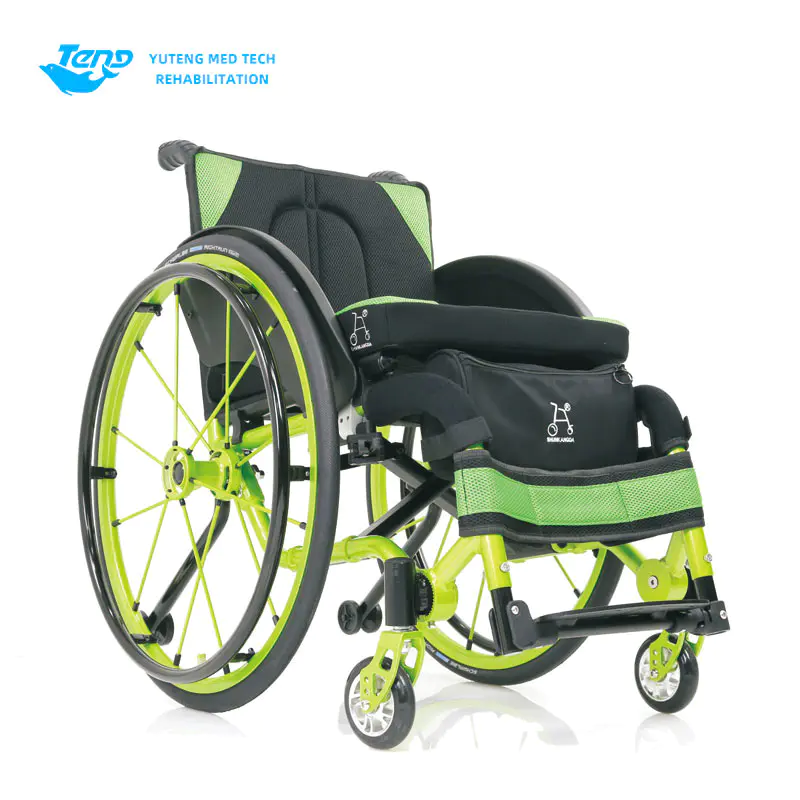

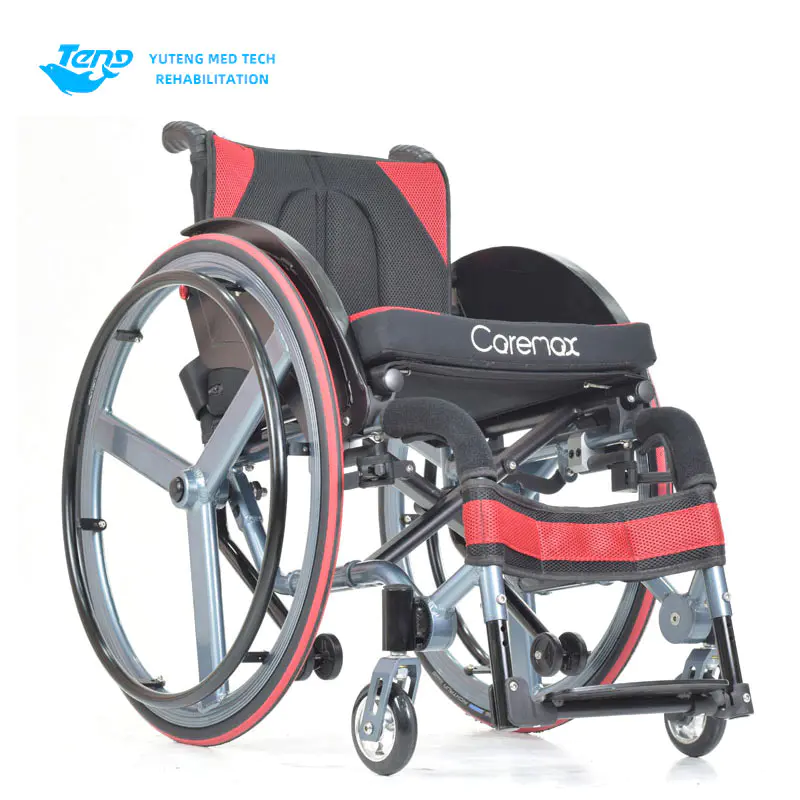

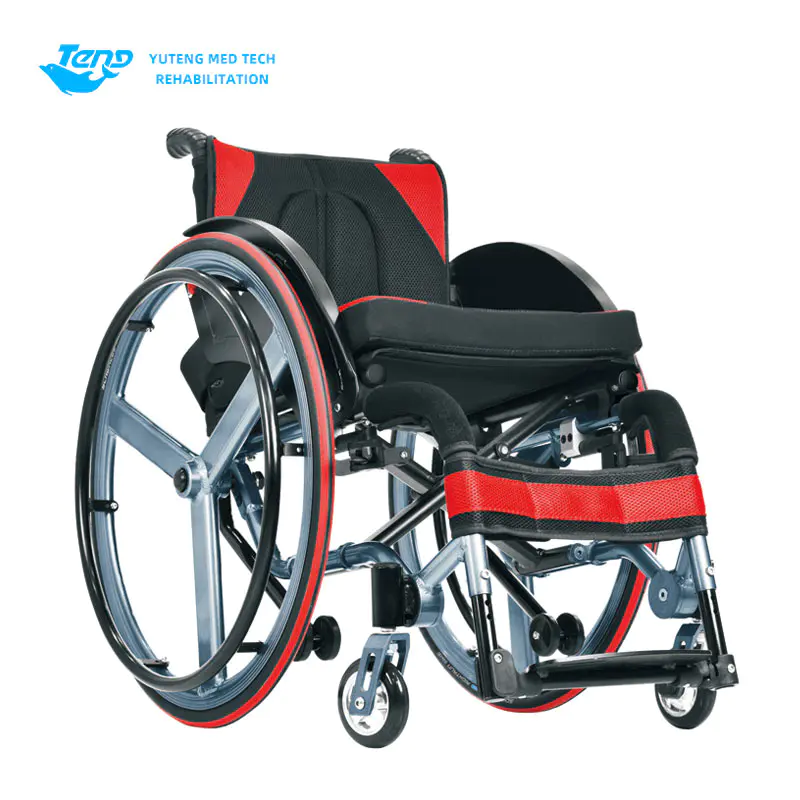

Yuteng Medical products outdoor sports manual wheelchair, sports manual wheelchair, manual aluminum wheelchair products. Collapsible quick detachable system.
Aluminum alloy light frame; Breathable and comfortable sponge cushion; Surface liquid spraying treatment; Color: red, blue, pink, gray and other colors; Carbon fiber, steel wire, aluminum alloy and other materials are available for the rear wheel.

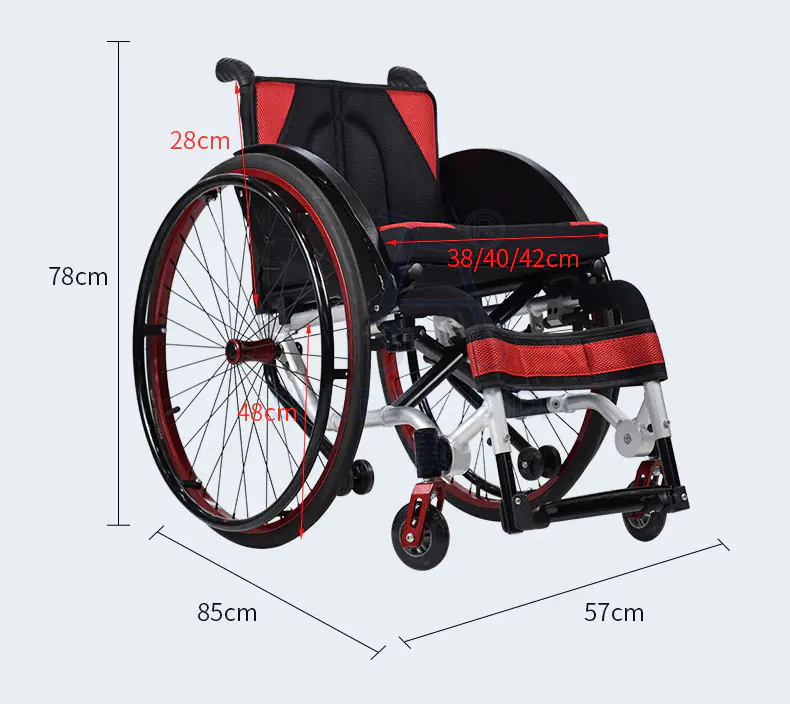

Parameter (Specification)
| Name: | Parameter |
| Usage status (cm): | 57 |
| Folded state (cm): | 32 |
| Seat width (cm): | 38 |
| Rear wheel diameter (cm): | 60 |
| Front wheel diameter (cm): | 10 |
| Seat height (cm): | 48 |
| Cushion depth (cm): | 36 |
| Total length (cm): | 85 |
| Total height (cm): | 78 |
| Backrest height (cm): | 28 |
| Maximum load (Kg): | 120 |
| Net weight (Kg): | 11 |
| Carton (cm): | 86*34*79.5 |
| Table/box: | 1 |
Feature And Application
1, frame: The diameter of 25.4*2.0 thick aluminum pipe welded, single cross tube folding, surface spraying, simple, safe and firm;
2, front wheel: The diameter of 10cm(4 inches) high-quality PU fertilizer wheel, with thickened aluminum alloy front fork;
3, rear wheel: the diameter of 60cm solid PU wheel, can be quickly disassembled, no inflation, wear-resistant, surface anode aluminum alloy
4, handwheel; The rear wheel is provided with 3 mounting holes, which can be disassembled to fine-tune the tilt Angle;
5, seat cushion: the use of patterned nylon cloth, there are reinforced canvas strengthening, there are sponges to increase the comfort of riding, with leg straps;
6, brake: plastic parking assembly, safe and reliable;
7, handrail: aluminum alloy protection plate, handrail two-in-one structure, curve shape, atmosphere beautiful;
8, leg removal: aluminum alloy pedal, beautiful and durable, adjustable height, reversible;
9, anti-tilt: with adjustable double-row wheel anti-tilt group, aluminum alloy adjustment tube.
