Single Brake Manual Wheelchair

With 26 years of experience in Single Brake Manual Wheelchair, we have established ourselves as a large-scale and reputable factory. Our single-brake manual wheelchairs have obtained certifications from FDA, CE, ISO1385, and TUV, ensuring compliance with international standards. Our products are exported globally. We welcome inquiries regarding pricing, wholesale orders, customization, and other forms of collaboration.

Send Inquiry

Product Description

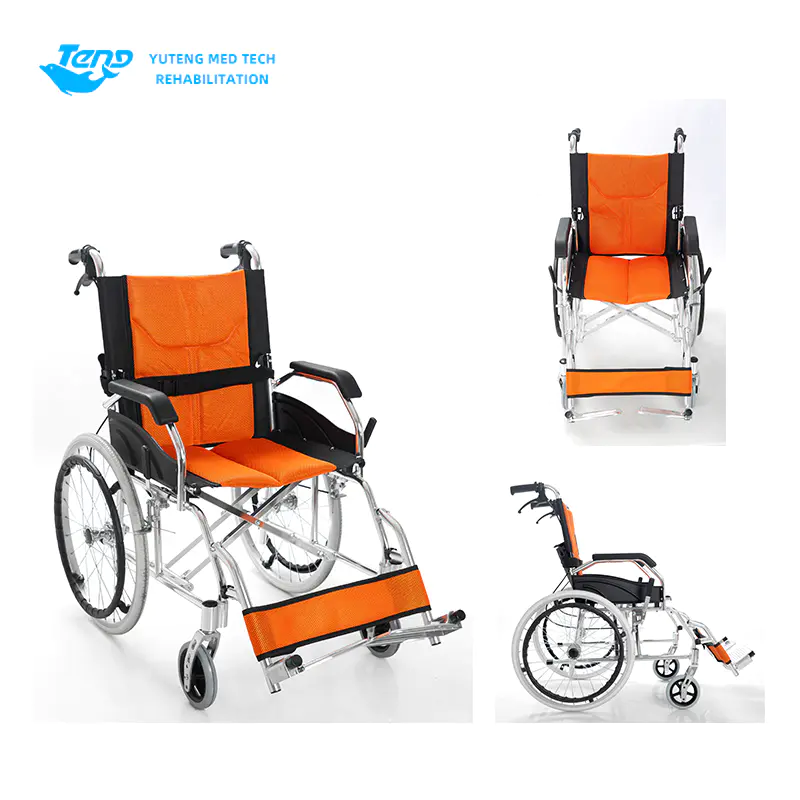

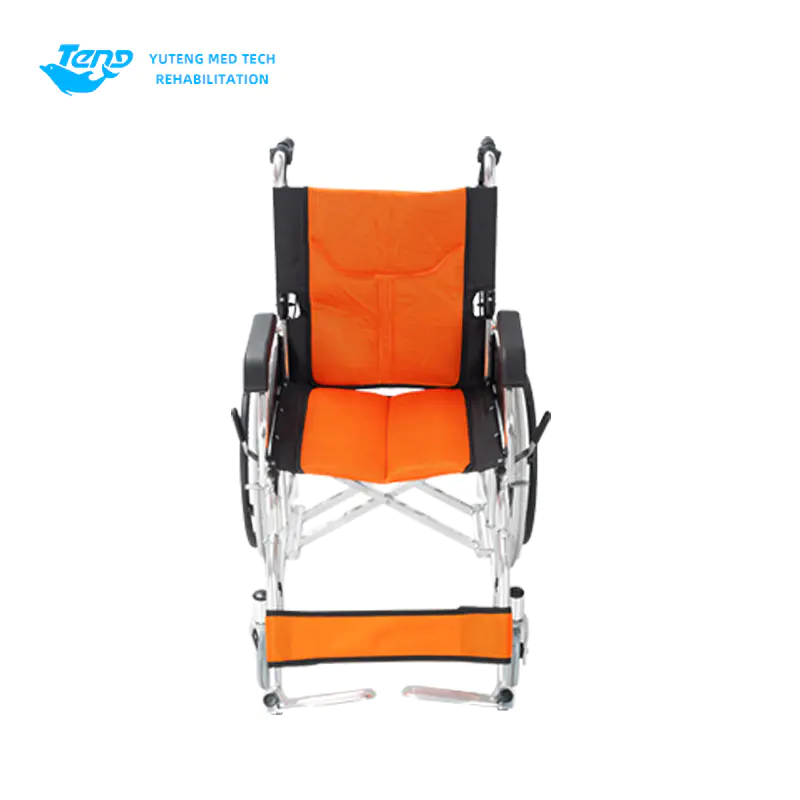

Yuteng Medical Products: The Single Brake Manual Wheelchair is an ultralight, foldable aluminum frame wheelchair. It features 12-inch solid PU tires with steel wheels and oxidized bright aluminum alloy handrims. The aluminum brake assembly allows for adjustable width and braking force. Additionally, it includes a 6-inch high-quality PVC wear-resistant caster wheel. The fixed handrails have a PU-coated curved surface, and the pedals are lift-enabled.

Parameter (Specification)

Name:	Parameter
Usage status (cm):	63
Folded state (cm):	27
Seat width (cm):	48
Rear wheel diameter (cm):	51
Front wheel diameter (cm):	15
Cushion height (cm):	49
Cushion depth (cm):	36

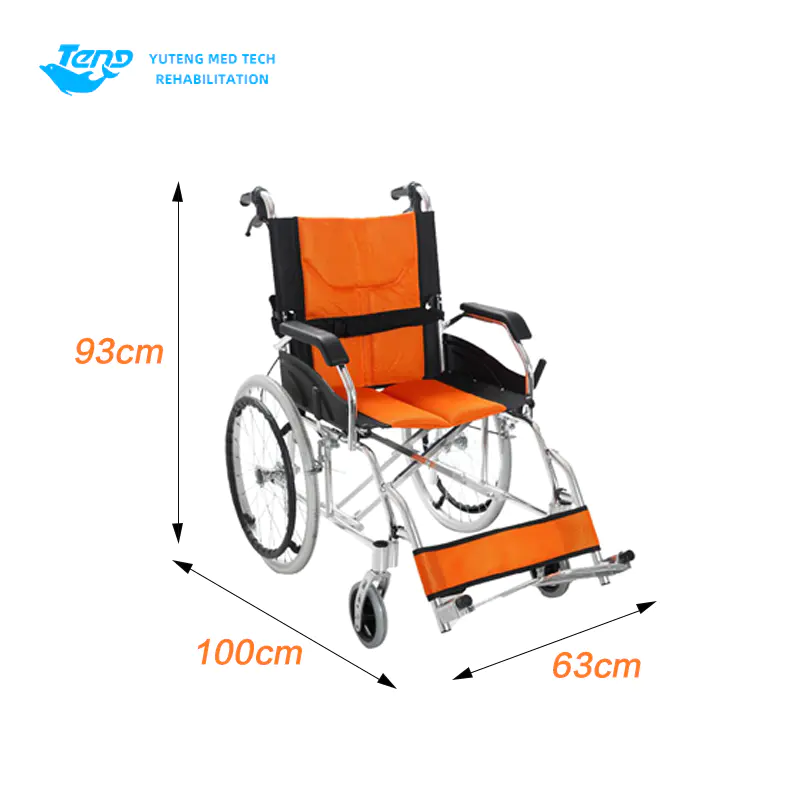

Total length (cm):	100
Total height (cm):	93
Backrest height (cm):	42
Maximum load (Kg):	100
Net weight (Kg):	11.9
Carton (cm):	802975
Table/box :	1

Feature And Application

1., frame: the diameter of 22*2.0 thick ultra-light aluminum alloy pipe welded, folding, double cross pipe structure, 1, surface oxidation, light weight, firm, safe, beautiful; Folding back; Foot height adjustable, can lift.

2. front wheel: The diameter of 15cm(6 inches) high-quality PVC wheel, has good wear resistance;

3. aluminum alloy front fork, surface oxidation; Flexible rotation;

4. rear wheel: The diameter of 51cm(20 inches) steel wheel PU tire, no inflation, wear and vibration absorption performance is good;

5. seat cushion: Oxford cloth + breathable mesh cloth, there are canvas and metal guard reinforced, as well as sponge to increase the ride comfort;

6. brake: double brake, rear care brake, brake handle with parking self-locking function + elbow brake, safe and reliable;

7. armrest: fixed armrest, with PU bent armrest, plastic protection board;

8. foot support: can lift foot support, with die-cast aluminum alloy foot pedal and mesh cloth leg belt, foot pedal height can be adjusted and reversible.
