24-Foot Manual Wheelchair

Yuteng Medical, a leading Chinese manufacturer specializing in 24-Foot Manual Wheelchair, operates from an extensive production facility. We provide comprehensive OEM/ODM services, wholesale distribution, and customized development for medical rehabilitation assistive devices.

Send Inquiry

Product Description

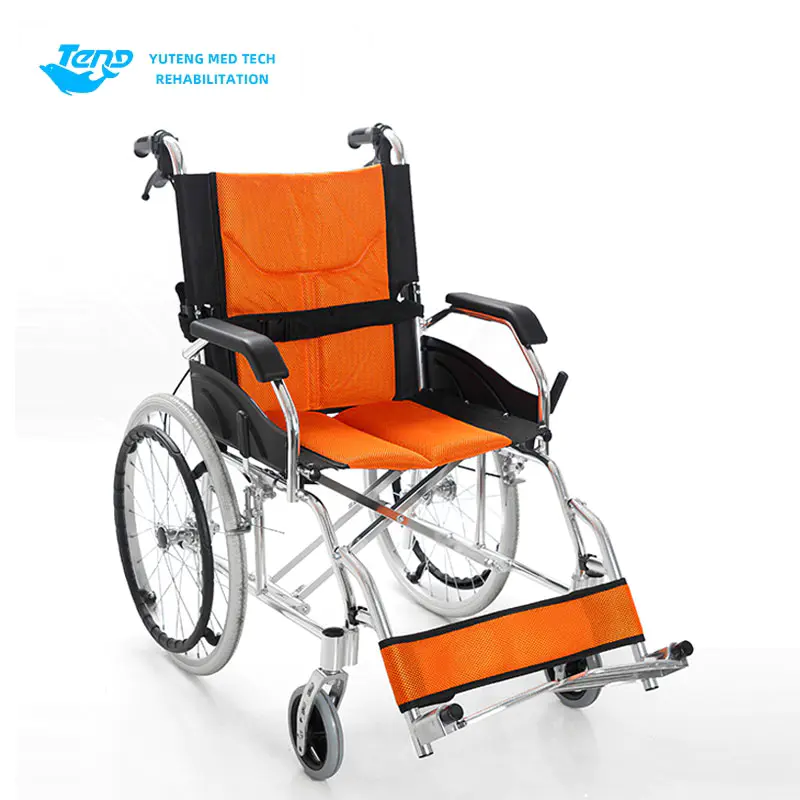

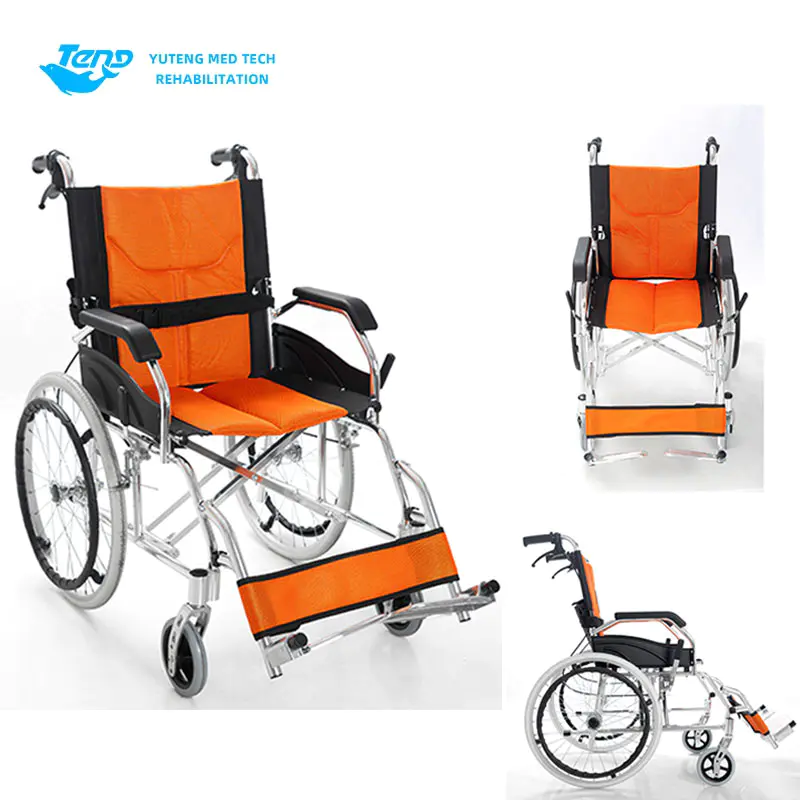

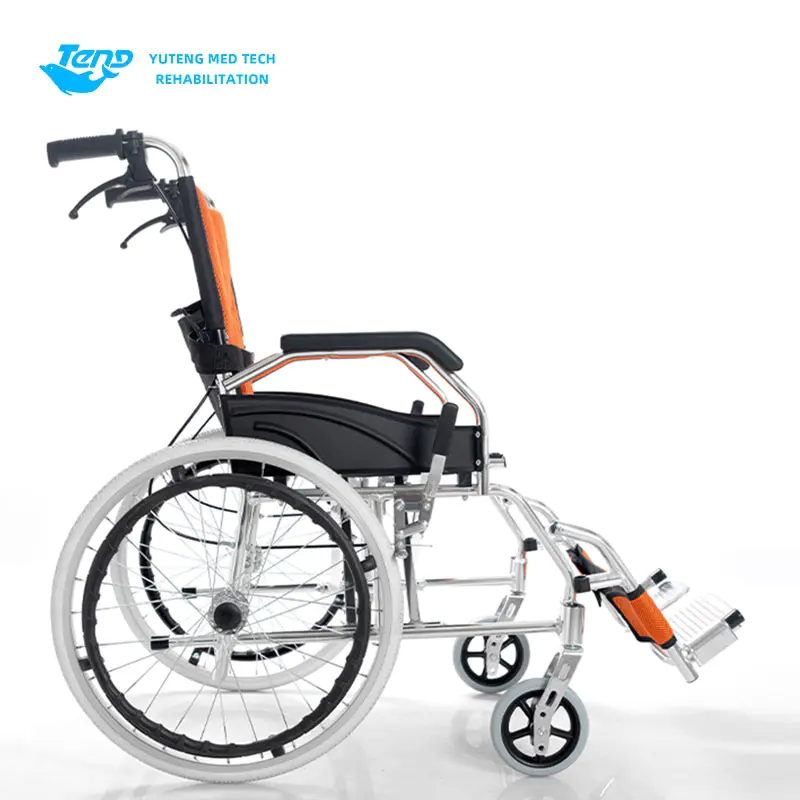

YuTeng medical series products: 24-Foot Manual Wheelchair, is aluminum wheelchair, manual wheelchair products. Solid PU tire steel wheel; The aluminum brake assembly can adjust the width and braking force at will; 6 inch high quality PVC wear-resistant wheel; Adjustable foot support; Because of the type of handrail, with PU curved handrail surface.

24-Foot Manual Wheelchair have obtained rigorous international certifications including FDA, CE, ISO13485, and TUV, ensuring compliance with global standards. Our wheelchairs are exported to more than 90 countries worldwide. We invite potential partners to discuss collaboration opportunities regarding product pricing, sample requests, quality assurance, technical specifications, and other relevant matters.

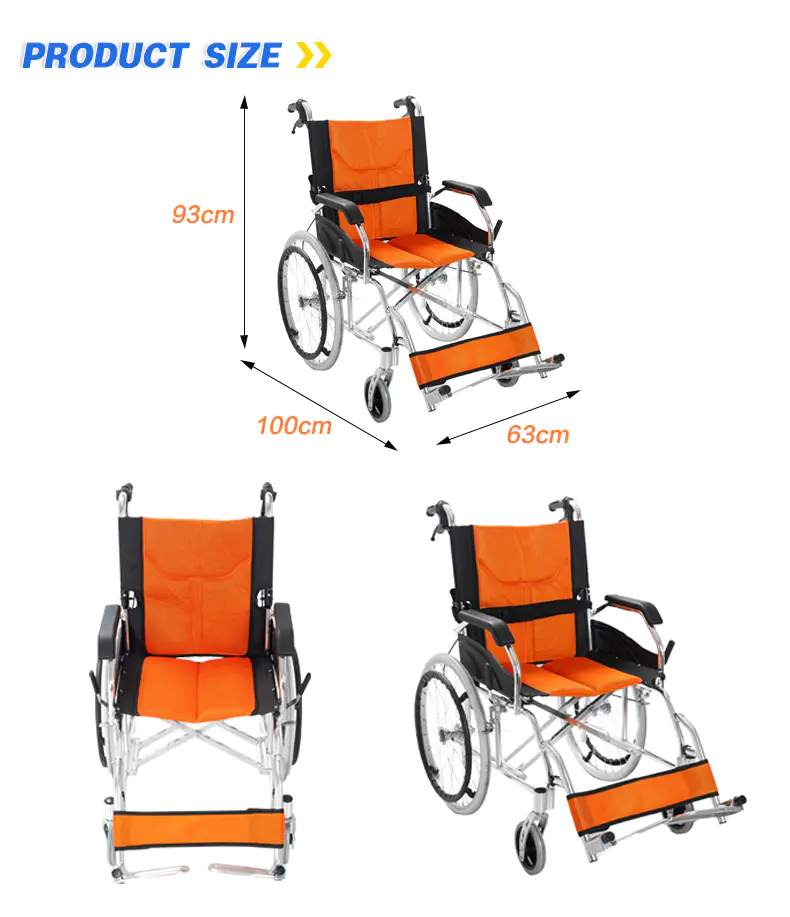

24-Foot Manual Wheelchair Parameter (Specification)

Name:	parameter
Usage status (cm):	63
Folded state (cm):	27
Seat width (cm):	48
Rear wheel diameter (cm):	51
Front wheel diameter (cm):	15
Cushion height (cm):	49
Cushion depth (cm):	36
Total length (cm):	100
Total height (cm):	93
Backrest height (cm):	42
Maximum load (Kg):	100
Net weight (Kg):	11. 9
Carton (cm):	802975
Table/box:	1

Feature And Application

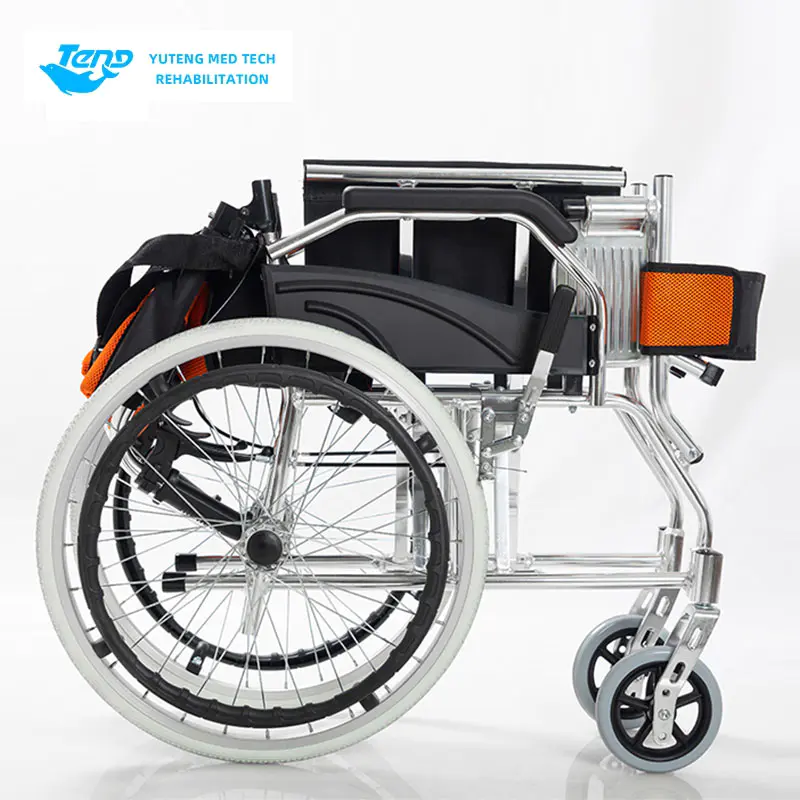

1. Frame: Constructed from ultra-light aluminum alloy tubing with a diameter of 22mm and a thickness of 2.0mm, the frame features a welded, foldable double cross-tube structure. The surface is treated with an oxidation process to enhance durability. This design ensures the frame is lightweight yet robust, providing safety and aesthetic appeal. The backrest can be folded, and the footrest height is adjustable, offering enhanced functionality.

2. Front Wheel: Equipped with a high-quality PVC wheel measuring 15cm (6 inches) in diameter, this component exhibits excellent wear resistance. The front fork is made of aluminum alloy and also features surface oxidation treatment. The wheel allows for flexible rotation.

3. Rear Wheel: The rear wheel has a diameter of 51cm (20 inches) and is constructed from steel with a PU tire that does not require inflation. It offers superior wear resistance and vibration reduction performance.

4. Seat Cushion: The seat cushion combines Oxford cloth and breathable mesh fabric, reinforced with canvas and metal guards. Sponge padding enhances riding comfort.

5. Brake System: The bicycle is equipped with a dual braking system, including a rear care brake and a handlebar-mounted parking self-locking function, as well as an elbow brake. This setup ensures safe and reliable operation.

6. Armrests: The armrests are fixed and feature PU-coated bent supports with plastic protection boards.

7. Foot Support: The foot support mechanism includes a die-cast aluminum alloy foot pedal and a mesh leg strap. The foot pedal height is adjustable and reversible.

Details

24 Foot Manual Wheelchair
