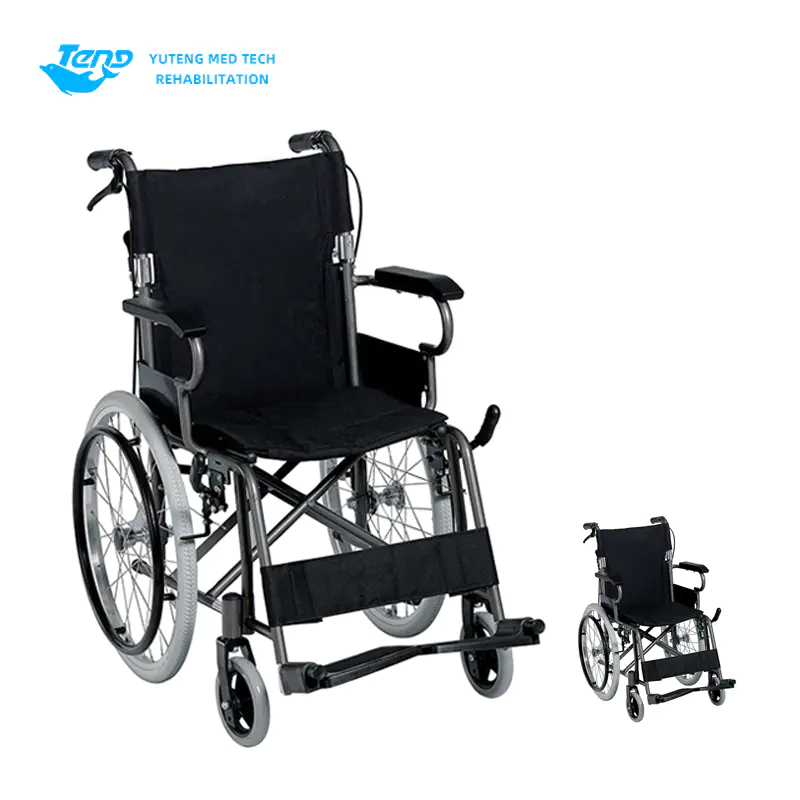

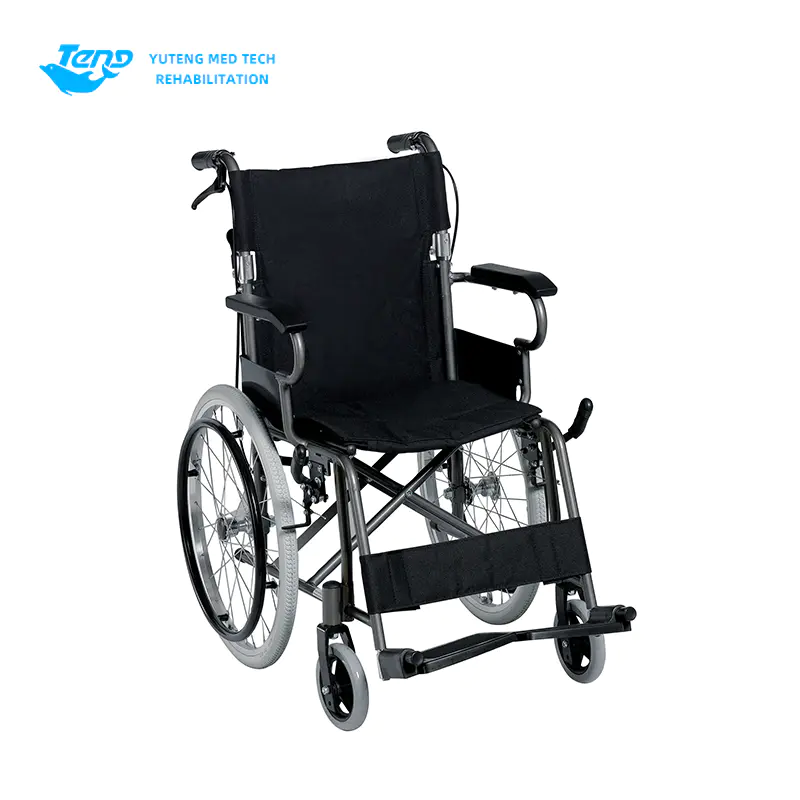

Double Brake Manual Wheelchair

Double Brake Manual Wheelchair can be bought from Yuteng Medical,a leading Chinese manufacturer. We provide comprehensive OEM/ODM services, wholesale distribution, and customized development for medical rehabilitation assistive devices.

Send Inquiry

Product Description

Yuteng medical series products: double brake manual wheelchair, iron manual wheelchair, manual wheelchair products.

Double Brake Manual Wheelchair have obtained rigorous international certifications including FDA, CE, ISO13485, and TUV, ensuring compliance with global standards. Our wheelchairs are exported to more than 90 countries worldwide. We invite potential partners to discuss collaboration opportunities regarding product pricing, sample requests, quality assurance, technical specifications, and other relevant matters.

Parameter (Specification)

Name:	parameter
Usage status (cm):	57
Folded state (cm):	28
Seat width (cm):	43
Rear wheel diameter (cm):	50
Front wheel diameter (cm):	15
Seat height (cm):	49

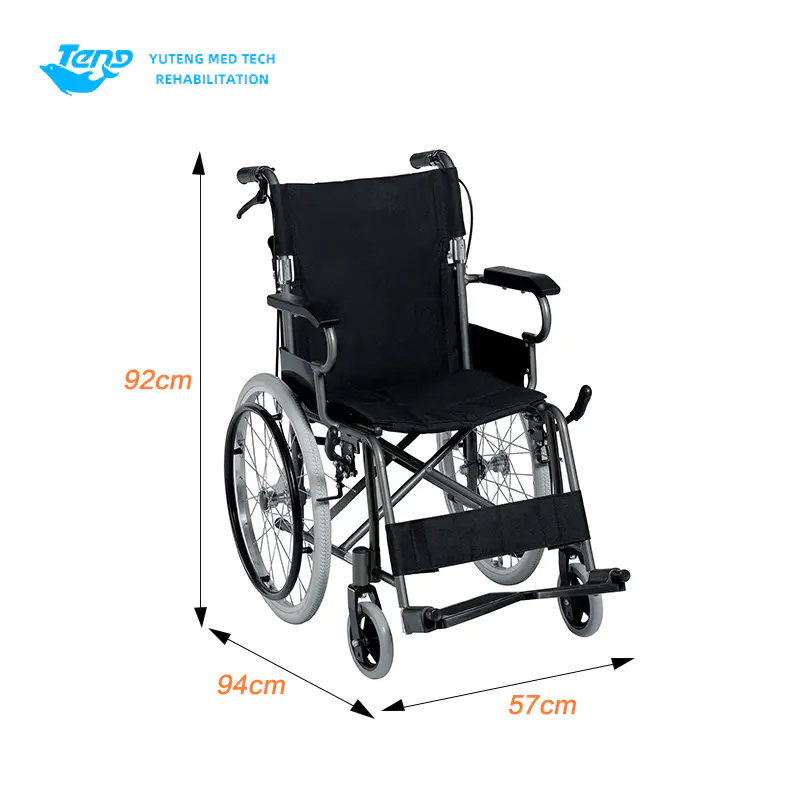

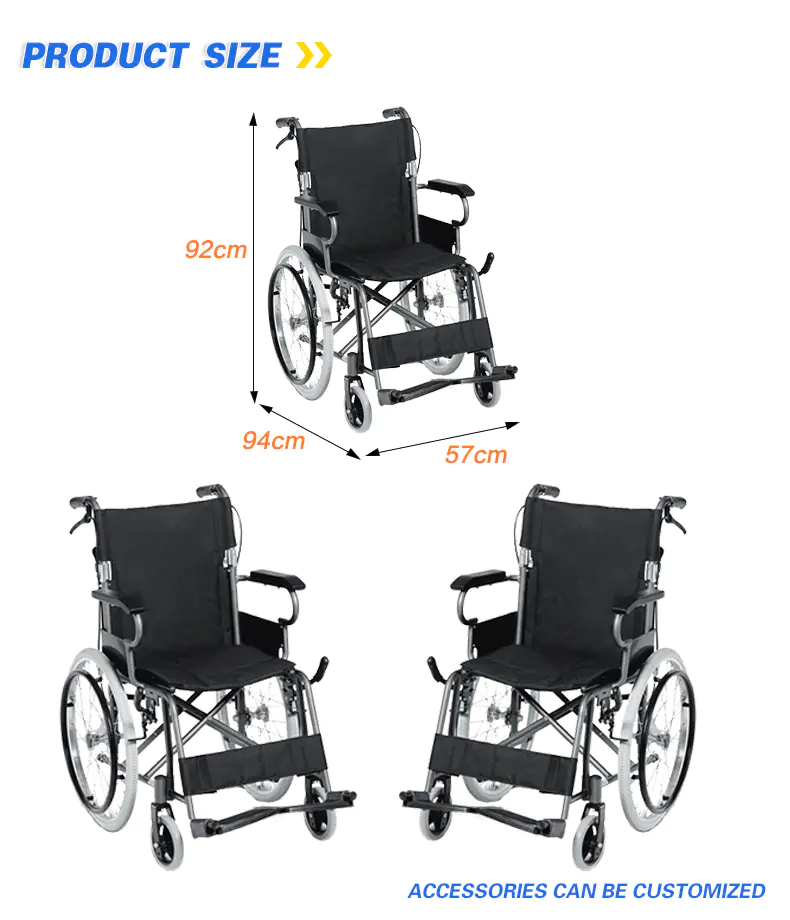

Total length (cm):	94
Total height (cm):	92
Backrest height (cm):	40
Maximum load (Kg):	100
Net weight (Kg):	12. 58
Carton (cm):	77x25x89cm
Table/box:	1

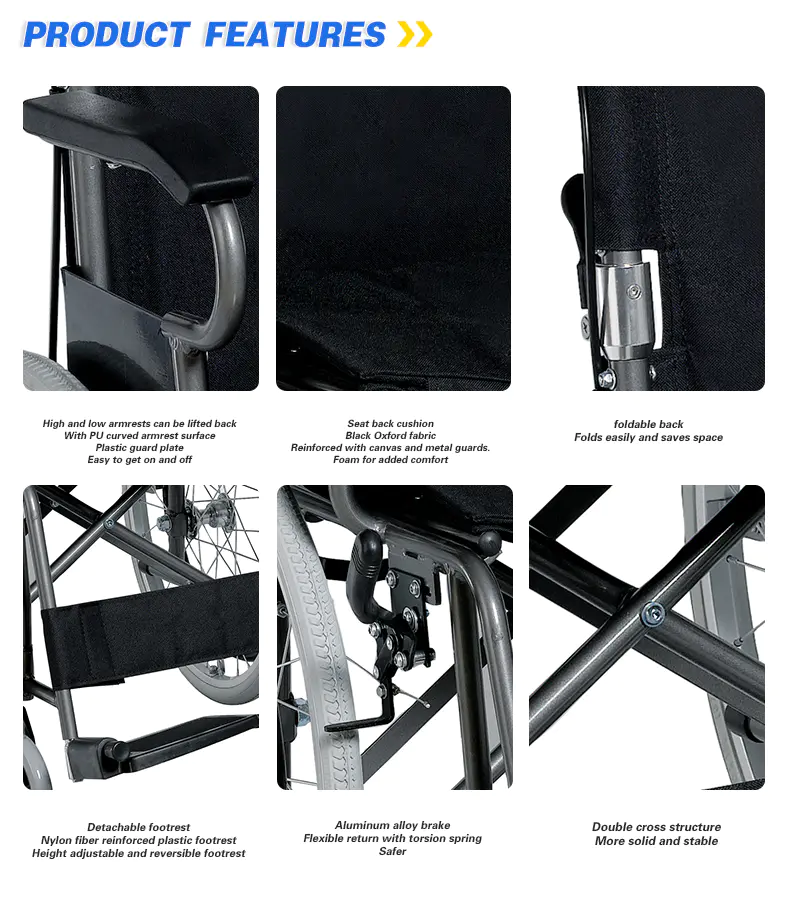

Feature And Application

1. Frame: Constructed from ultra-light aluminum alloy tubing with diameters of 22*2.0/19*3.0/19*2.0, the frame is welded, foldable, and features surface oxidation for a lightweight, sturdy, safe, and aesthetically pleasing design. The backrest can be folded down, and the seat height is adjustable.

2.Front wheel: A high-quality PVC wheel with a diameter of 15 cm (6 inches), offering excellent wear resistance; the front fork is made of aluminum alloy with surface oxidation treatment, ensuring flexibility.

3.Rear wheel: A 50 cm (20 inches) solid PU tire steel wheel that does not require inflation and provides superior wear resistance and vibration reduction performance. The handwheel is made of oxide-bright aluminum alloy. Seat back cushion: Made of black Oxford cloth, reinforced with canvas and metal guards, and includes sponge padding to enhance riding comfort.

4.Brake: An aluminum parking assembly that allows adjustment of width and brake tightening force, ensuring safety and reliability.

5.Handrail: Features a reversible high-low handrail with a PU-coated curved surface and plastic protection board, facilitating easy access to the wheelchair and table.

6.Foot support: Detachable foot support equipped with high-strength nylon and fiber plastic foot pedals; includes black Oxford leg straps, with adjustable and reversible footboard height.

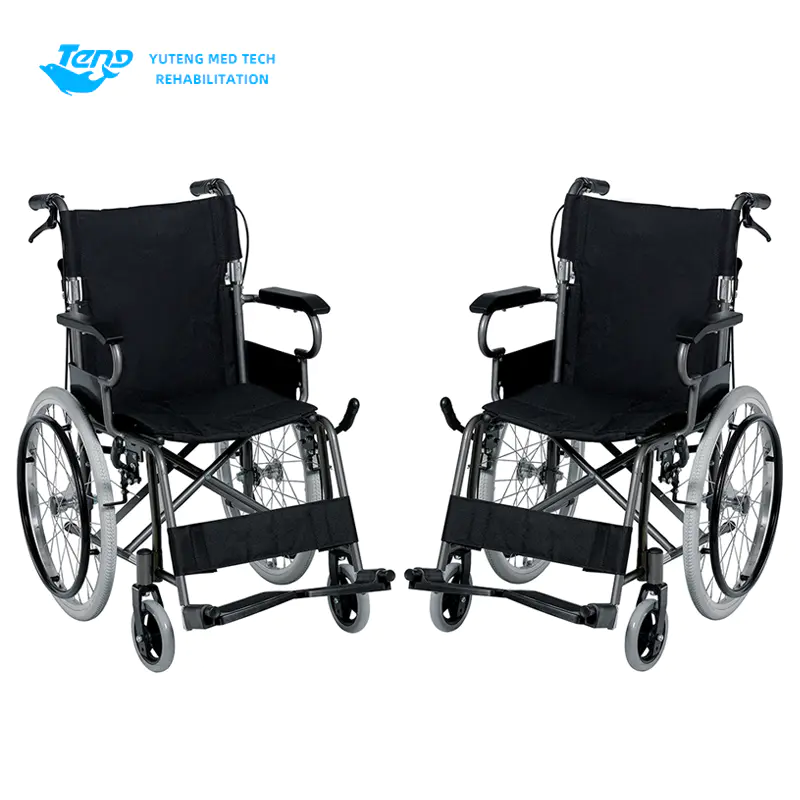

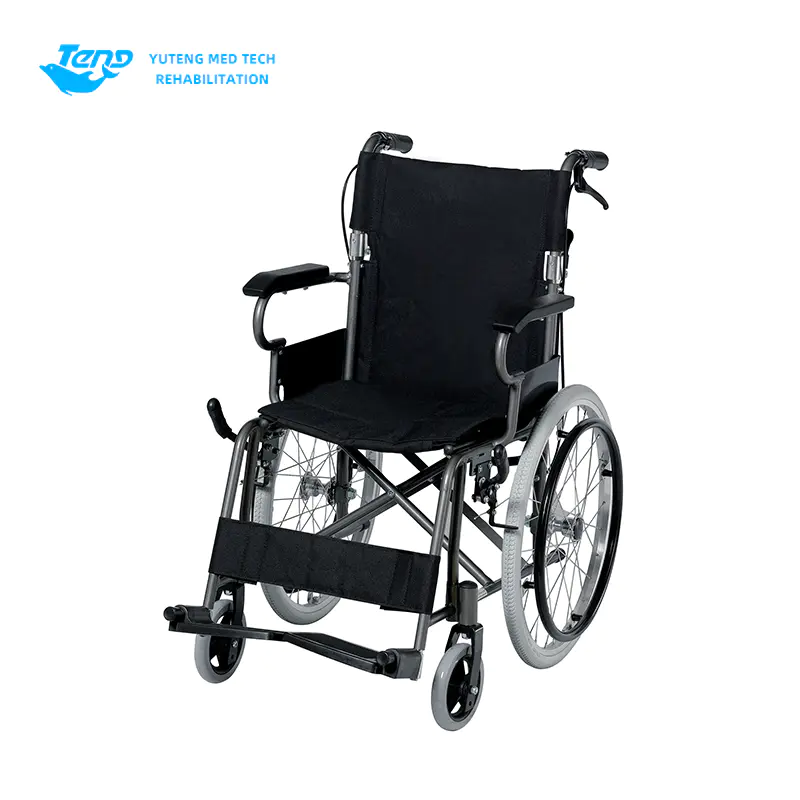

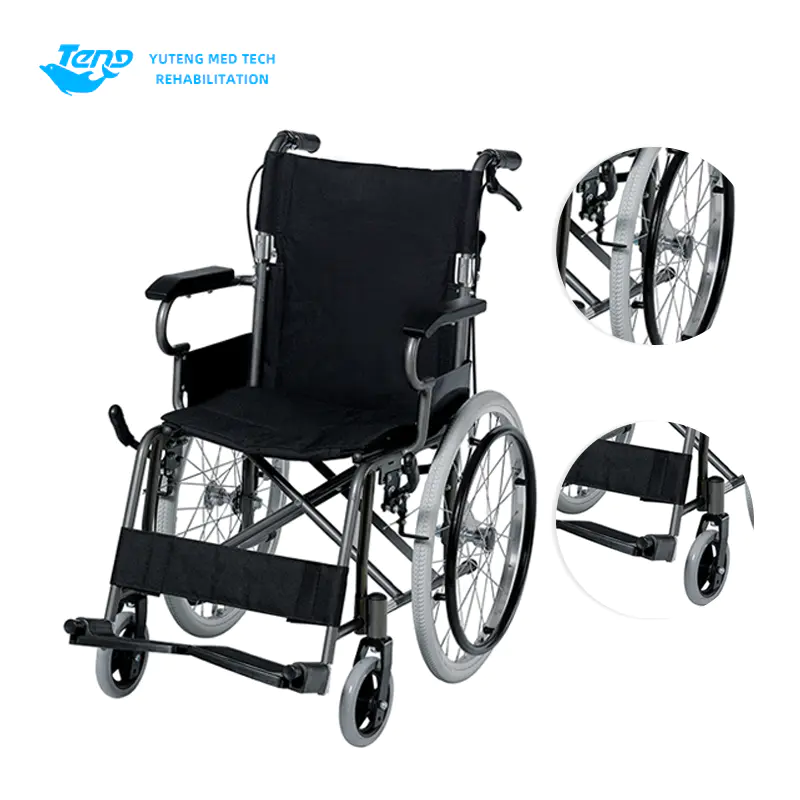

Yuteng medical Double Brake Manual Wheelchair Details

Double Brake Manual Wheelchair
