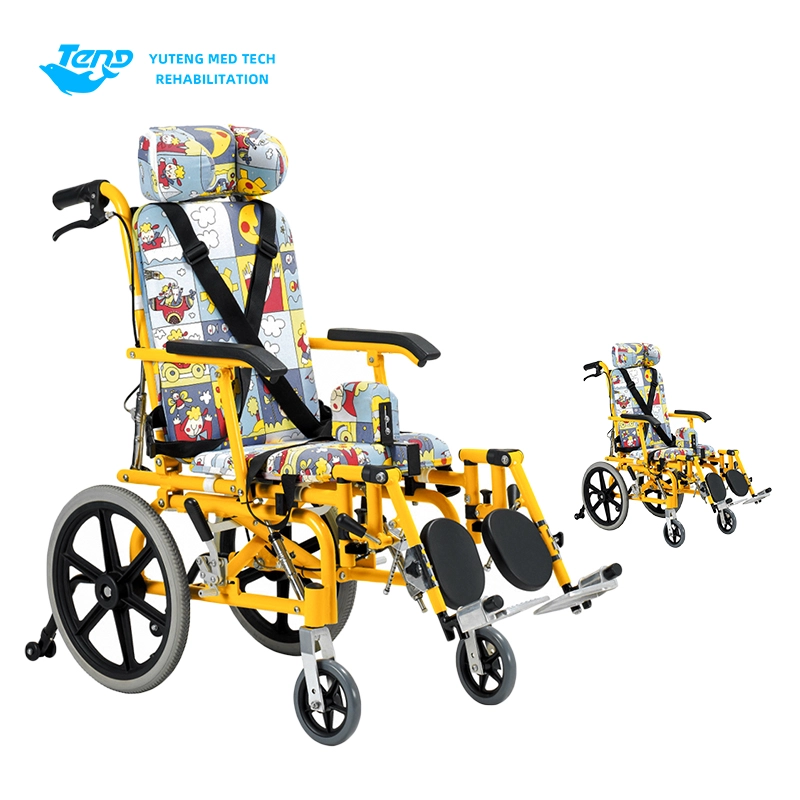

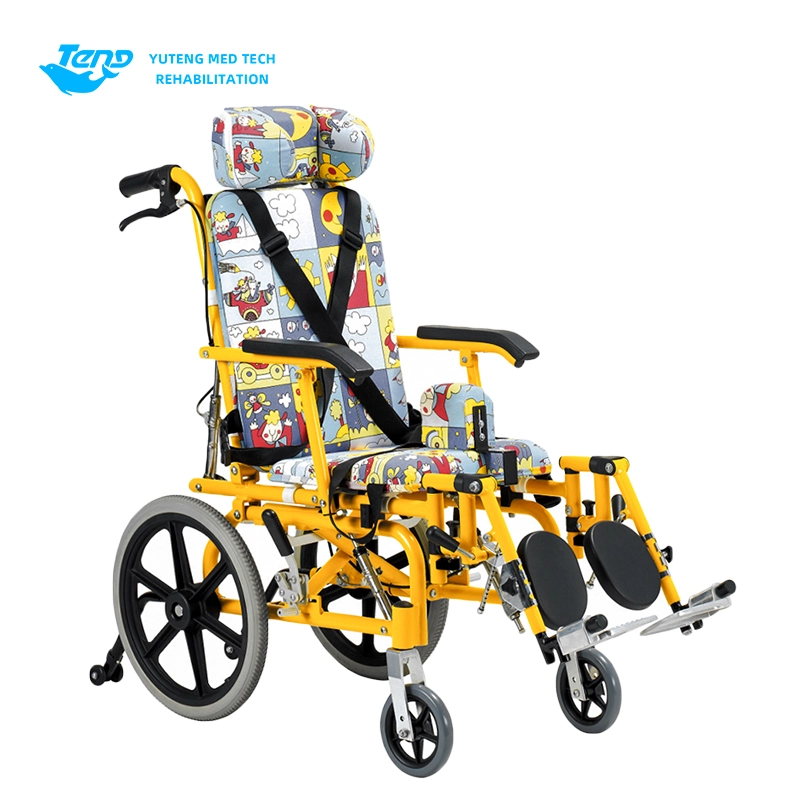

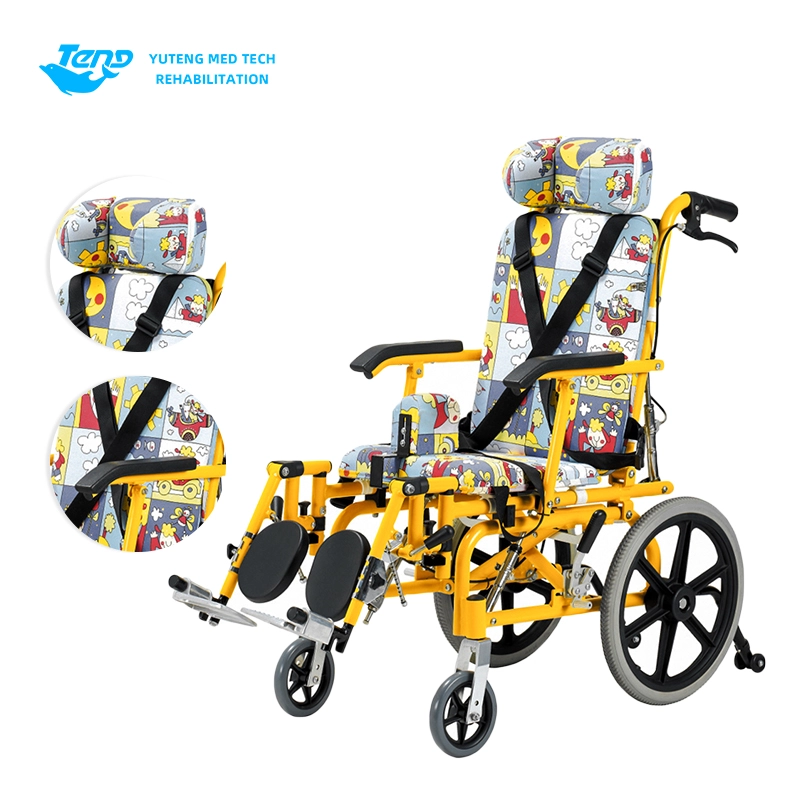

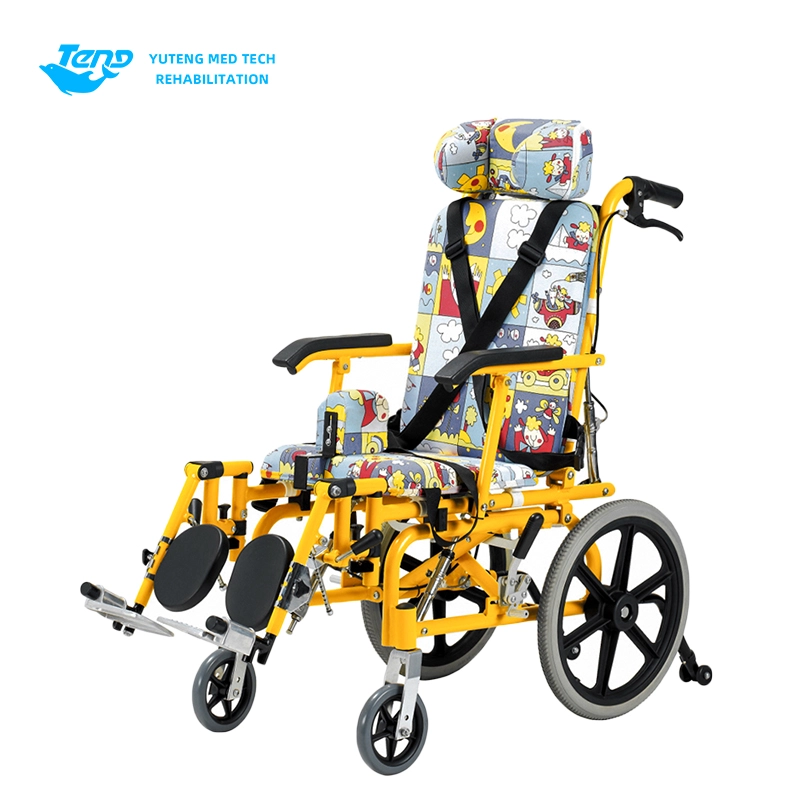

Yuteng Medical Products: The Aluminum Alloy Cerebral Palsy Wheelchair is an ultralight, foldable aluminum frame wheelchair. Adjustable footrest support; Capable of lying completely flat with a high-back design, and features a raisable headrest; Equipped with an aluminum braking mechanism, ensuring safety and reliability.
Parameter (Specification)
Name: | parameter |
Usage status (cm): | 49 |
Folded state (cm): | 25 |
Seat width (cm): | 35 |
Rear wheel diameter (cm): | 38 |
Front wheel diameter (cm): | 15 |
Cushion height (cm): | 49 |
Cushion depth (cm): | 38 |

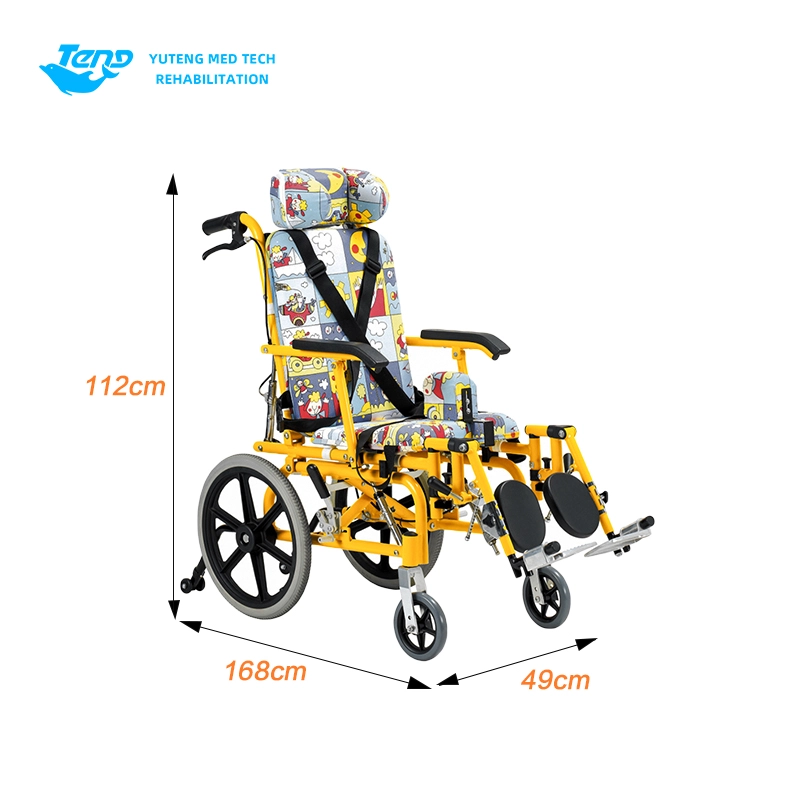

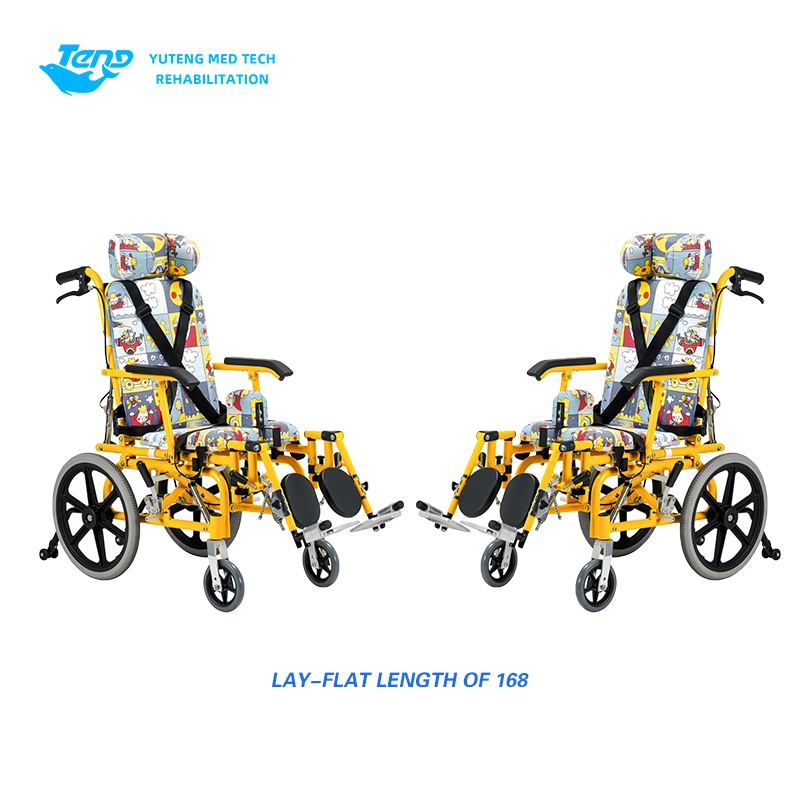

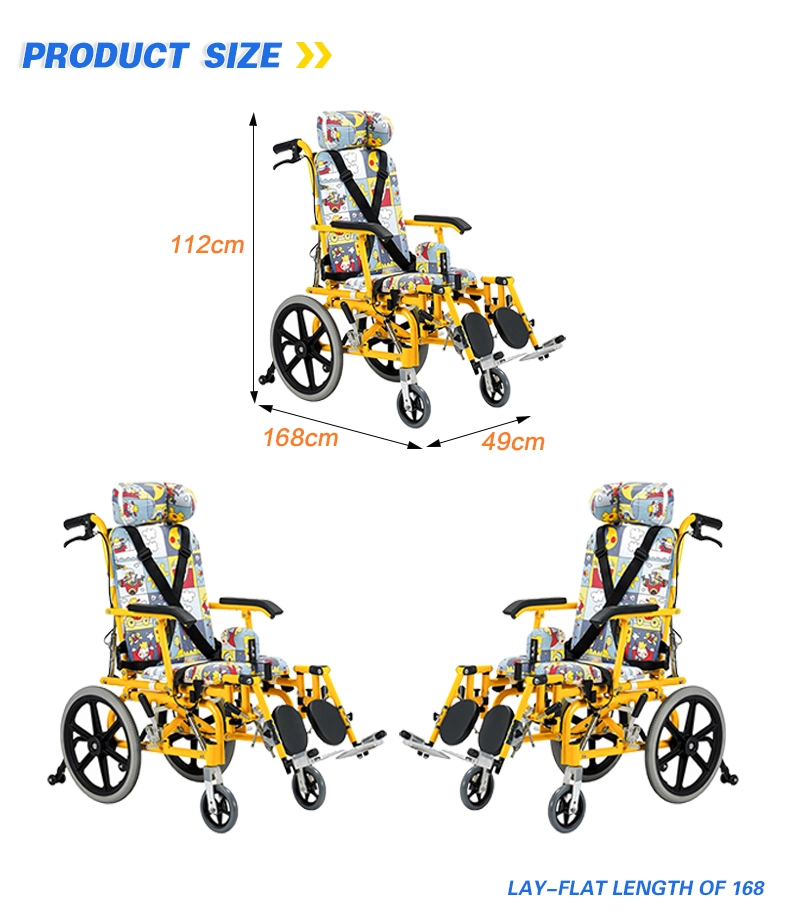

Total length (cm): | 168 |
Total height (cm): | 112 |
Backrest height (cm): | 39 |
Maximum load (Kg): | 100 |
Net weight (Kg): | 17. 8 |
Carton (cm): | 80*27*91 |
Table/box: | 1 |

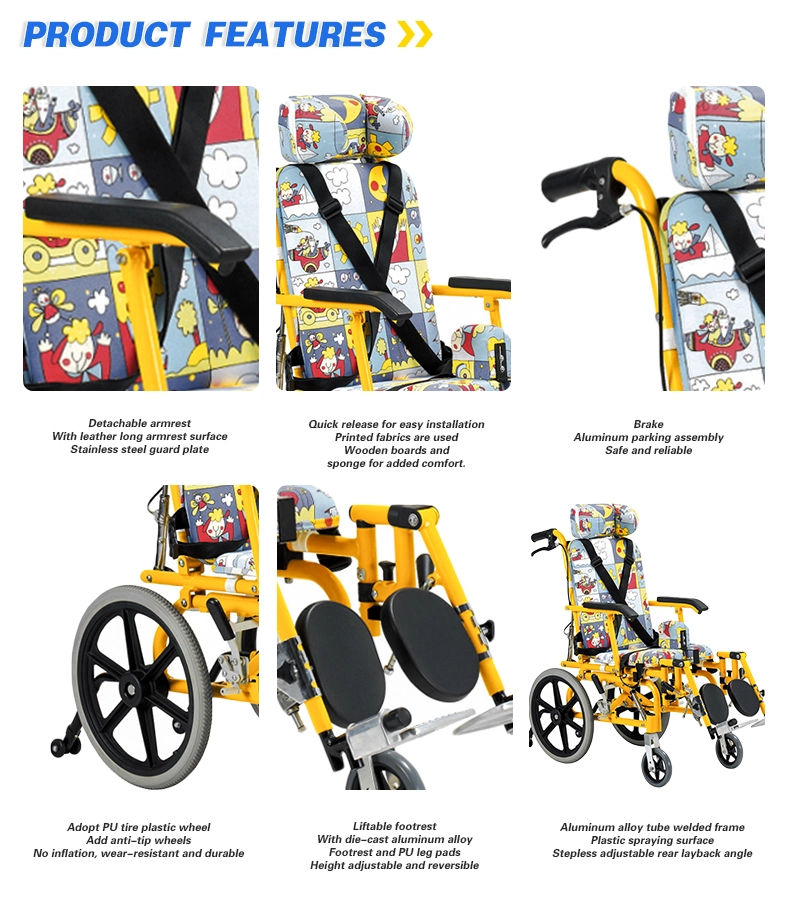

Feature And Application
1.Frame: The high-backrest design allows for a fully reclined position, while the semi-enclosed headrest provides excellent support and stability. Constructed from 25.4mm diameter aluminum alloy tubing with a thickness of 2.0mm, the frame is powder-coated for durability. The reclining angle is adjustable in steps, and the armrests automatically adjust to the reclining angle, ensuring safety and sturdiness. This design is particularly suitable for children with cerebral palsy.
2.Front Wheel: Equipped with a 15cm (6-inch) high-quality PU wheel and an aluminum alloy fork, offering flexibility and wear resistance.
3.Rear Wheel: Featuring a 38cm PU tire that does not require inflation and is highly wear-resistant.
4.Seat Back Pad: Designed for quick disassembly and easy installation, the seat back pad uses printed fabric and includes sponge padding for enhanced comfort. The back cushion comes with dual-cross seat belts, and the seat cushion features a seat belt and anti-slip jockstrap.
4.Brake: Fitted with an aluminum parking assembly, ensuring safety and reliability.
5.Armrest: Removable armrests with leather-covered long armrest surfaces and stainless steel protective plates.
7.Foot Support: Adjustable footrests with die-cast aluminum alloy foot pedals and PU leg pads. Both the foot pedal and leg pad height can be adjusted and are reversible.
