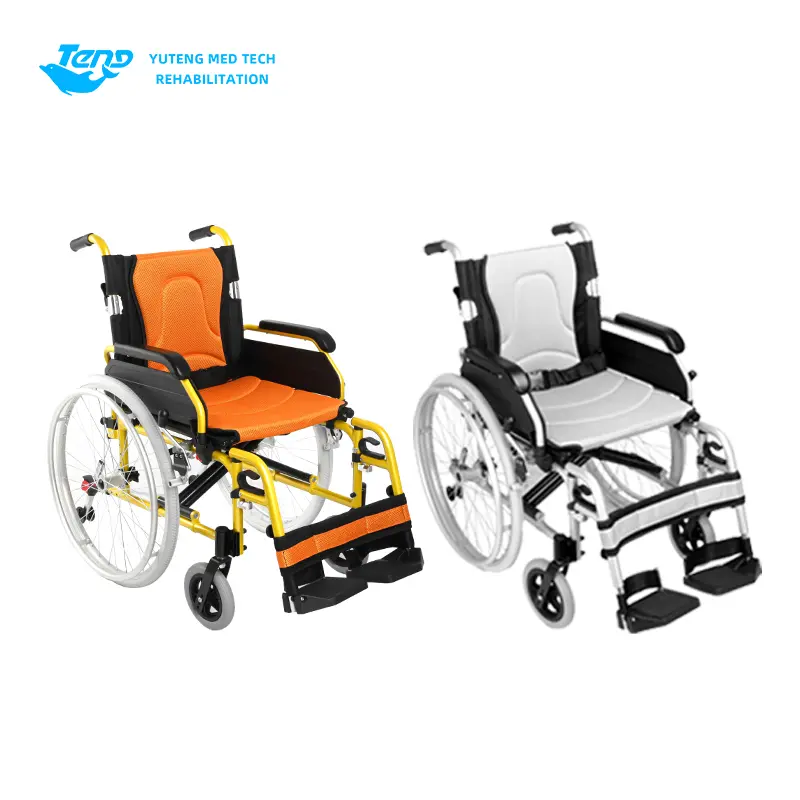

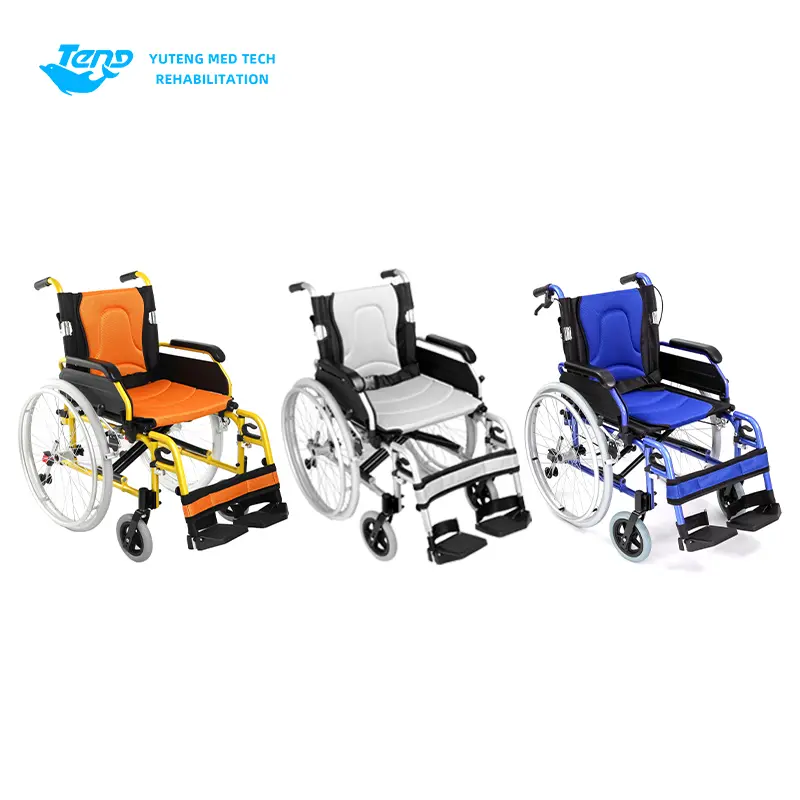

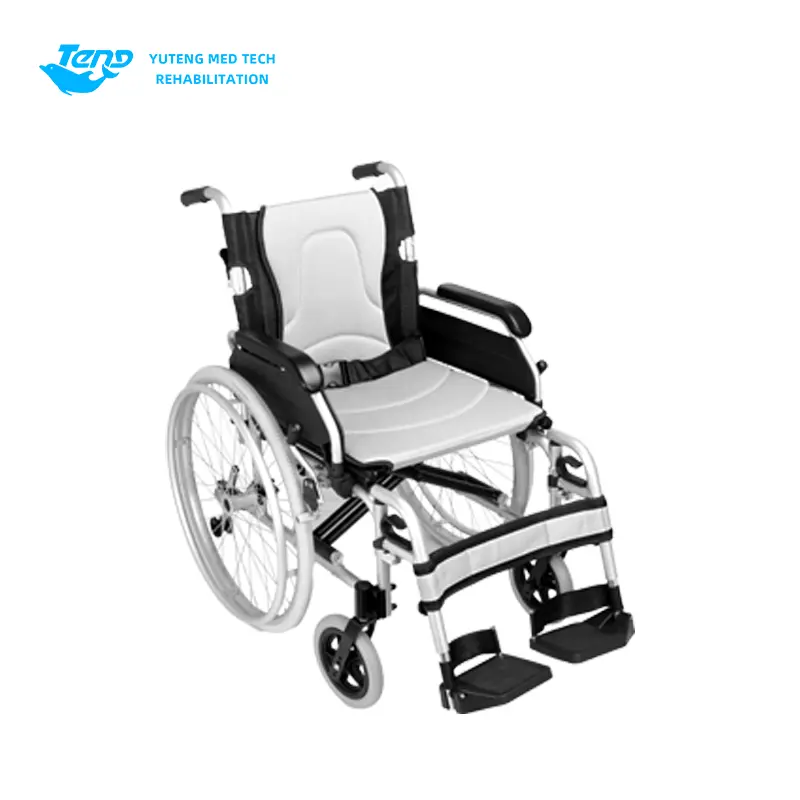

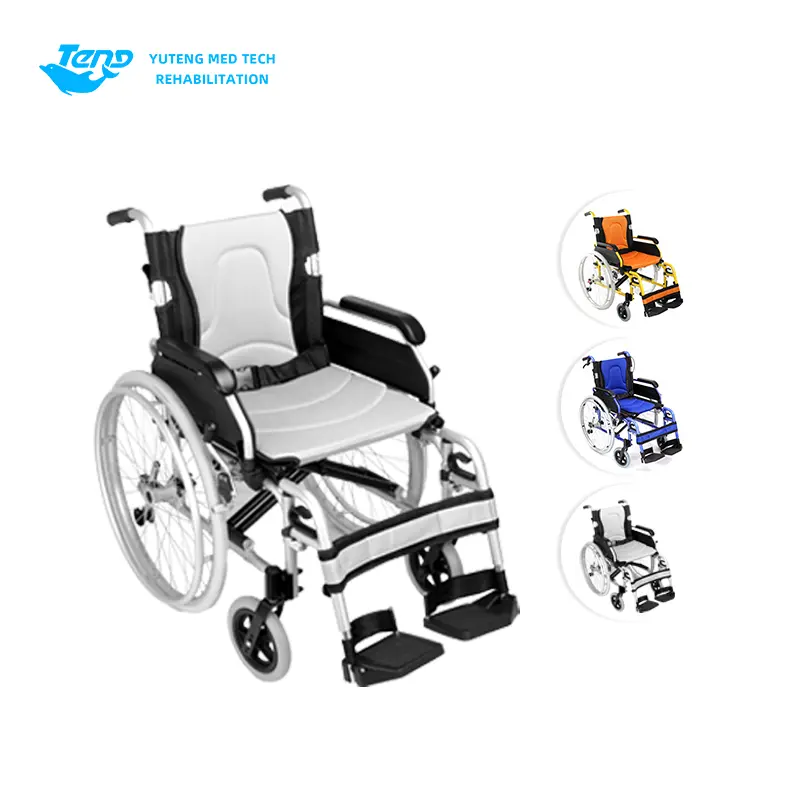

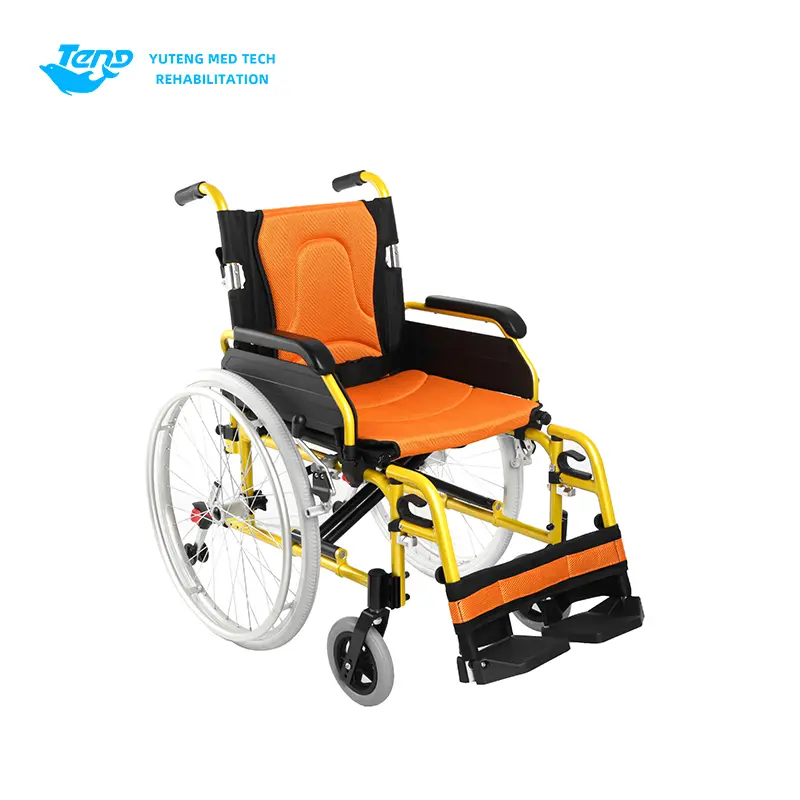

CA9862LFQ
Manual wheelchair trolley

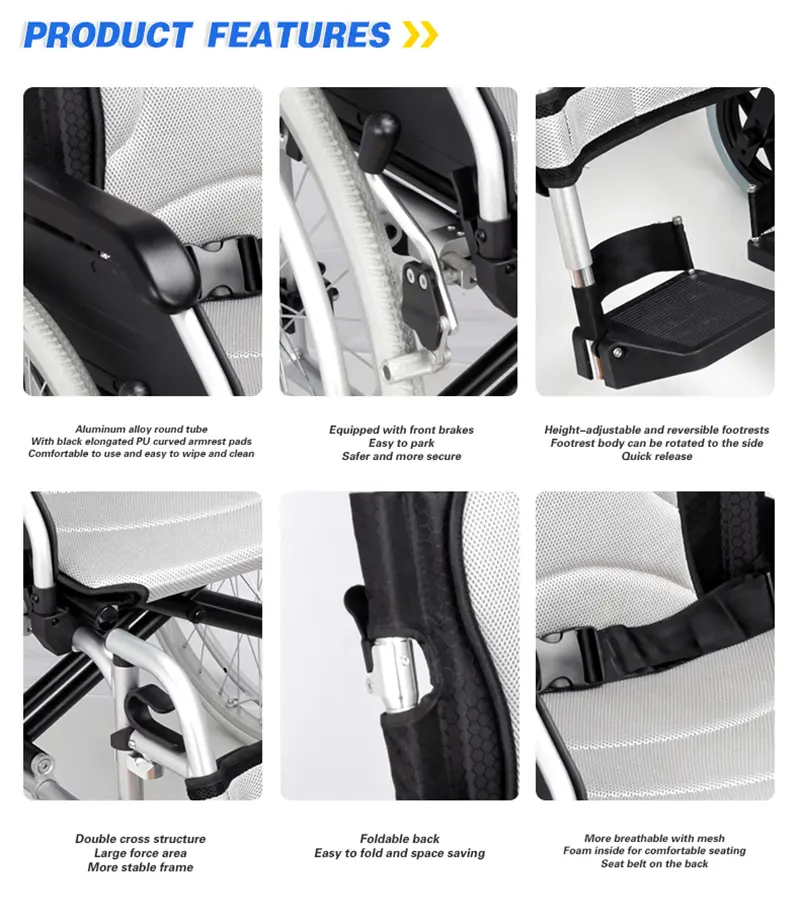

High quality PU wheels and high strength aluminium alloy forks. High quality PU wheels high strength aluminium alloy fork
Rear Wheel. Solid PU tread tyres steel wire wheels quick release rear wheels.
Nylon cloth sponge seat back cushion. Nylon fabric sponge seat back cushion
Rear wheel height can be adjusted up and down. Rear wheel height can be adjusted up and down.
Rear wheel height can be adjusted up and down. Aluminium alloy parking assembly
Aluminium parking assembly. Rear lifting quick release armrests
F-shape removable legs: removable foot rests.
Aluminum Light Weight Wheelchair has obtained rigorous international certifications including FDA, CE, ISO13485, and TUV, ensuring compliance with global standards. Our wheelchairs are exported to more than 90 countries worldwide. We invite potential partners to discuss collaboration opportunities regarding product pricing, sample requests, quality assurance, technical specifications, and other relevant matters.

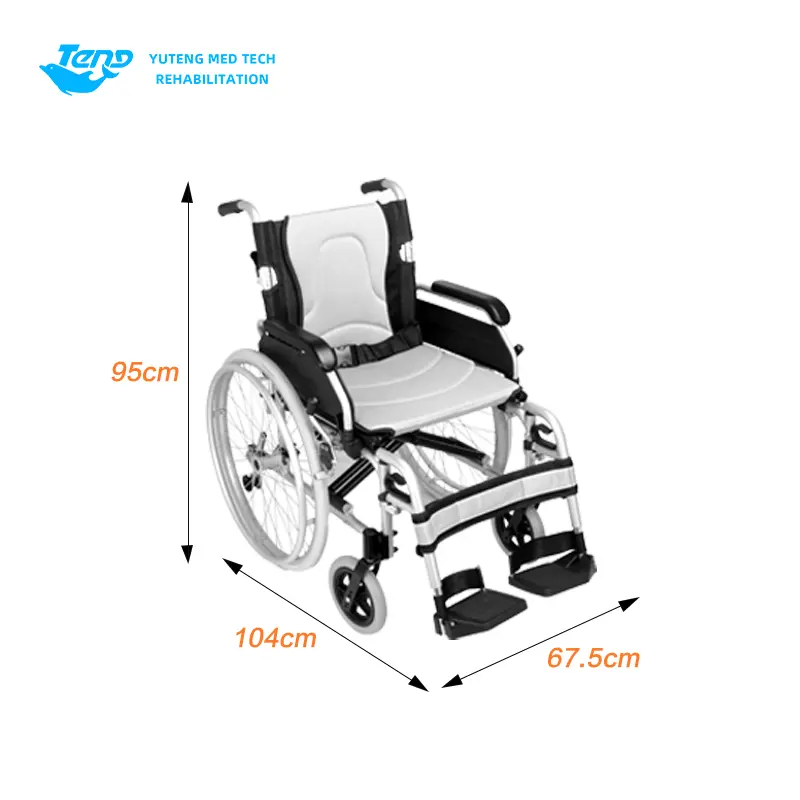

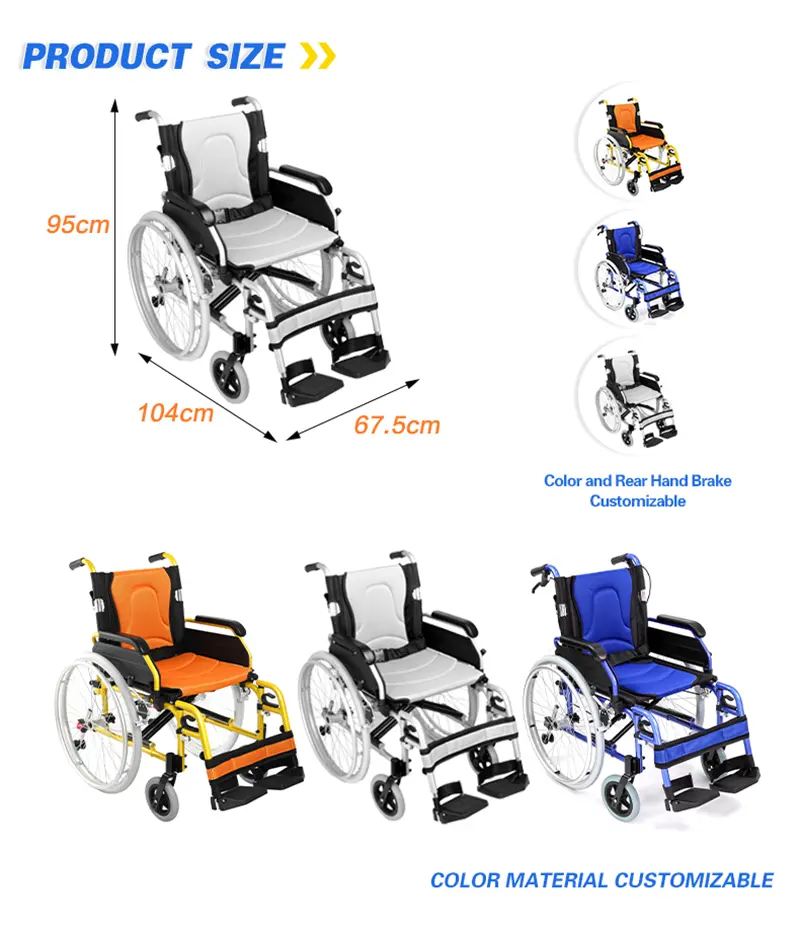

Parameter (Specification)
Width: | 65 |
Folding width: | 31 |
Seat width: | 46 |
Seat depth: | 43 |
Rear wheel diameter: | 24 |
Front wheel diameter: | 8 |
Seat height: | 52 |
Length: | 100 |
Height: | 94 |
Backrest height: | 35 |
Packing size: | 78*32*95. 5 |
Table loading: | 1 |
Maximum load: | 120 |
Net/Gross Weight: | 16. 5/18. 5 |
20ft loading capacity: | 115 |
40ft loading capacity: | 283 |
Feature And Application
The aluminium lightweight wheelchair is a mobility aid made mainly of aluminium alloy, designed for people who need short or long-term mobility support. The following is a detailed analysis:
I. Core features
Attributes Specification
Material Aircraft grade aluminium alloy (6000/7000 series), weight only 8-12kg (ordinary steel wheelchair is about 18-25kg).
Structure Foldable design, thickness 15-25cm after folding, unfolded size about 100×60×90cm.
Load capacity Standard model 100-135kg, reinforced version up to 150kg.
Manoeuvrability Rear wheel diameter 50-60cm (large wheel for self-propulsion), front castors 15-20cm (flexible steering).
II. Core uses and roles
1. Daily mobility support
Mobility function: alternative to walking, suitable for people with lower limb weakness, post-surgery recovery or long-term mobility impairment.
Scene coverage: indoor narrow space (door width ≥ 70cm can be passed), outdoor short-distance travelling
2. Health Management
Preventing complications: Reducing pressure sores caused by prolonged bed rest (cushion pressure dispersion design)
Position maintenance: adjustable footrest to prevent lower limb oedema (angle adjustment range 0°-90°)
3. Social participation
Portable travelling: fits in the boot of a car (takes up about 0.2m³ of space when folded).
Compatibility with public facilities: compliant with accessibility standards (seat height 48-52cm to match public seats).
Comparison with other wheelchairs
Type Aluminium Lightweight Wheelchair High Back Reclining Wheelchair
Weight 8-12kg 25-40kg
Scenarios of use Daily activities/short-term travelling Medical care/long-term bed rest
Position adjustment Seat angle adjustment only (approx. 15°) Full recline + leg rest linkage
Price range ¥800-3000 ¥6000-20000
Precautions
Regular maintenance: check axle lubrication (add silicone-based lubricant every 3 months)
Anti-skid treatment: use in rainy days need to clean the tyre pattern (replace the tyre pattern depth <2mm)
Fit assessment: Seat depth should be 2-3cm shorter than the user's thigh length (to avoid compression of the popliteal fossa).
