Lightweight Rollator Walker

Aluminum Rollator

Liquid coated frame

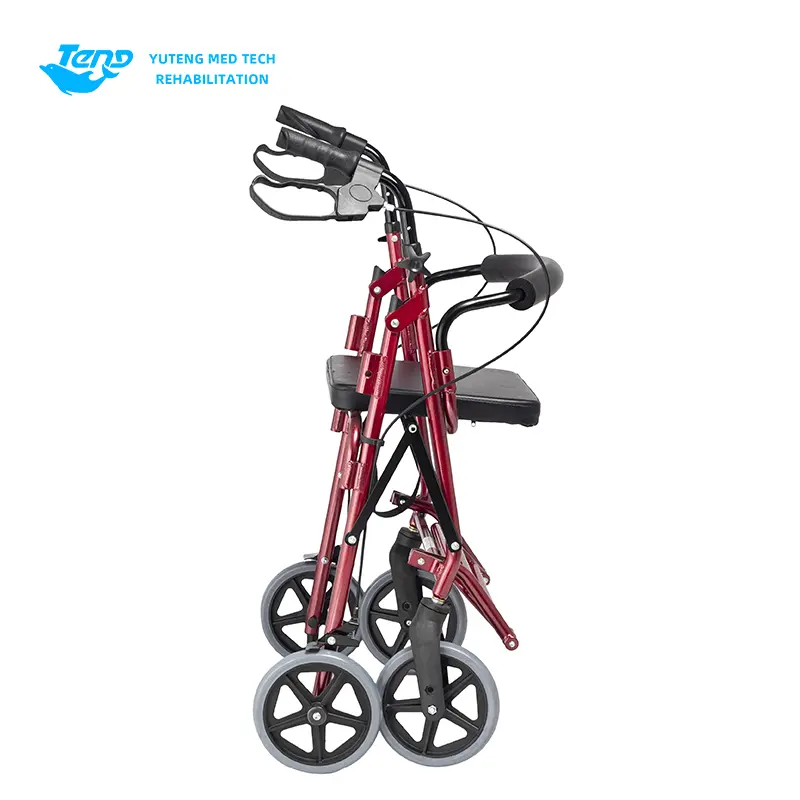

Folding footrest, optional armrest

With8" castors

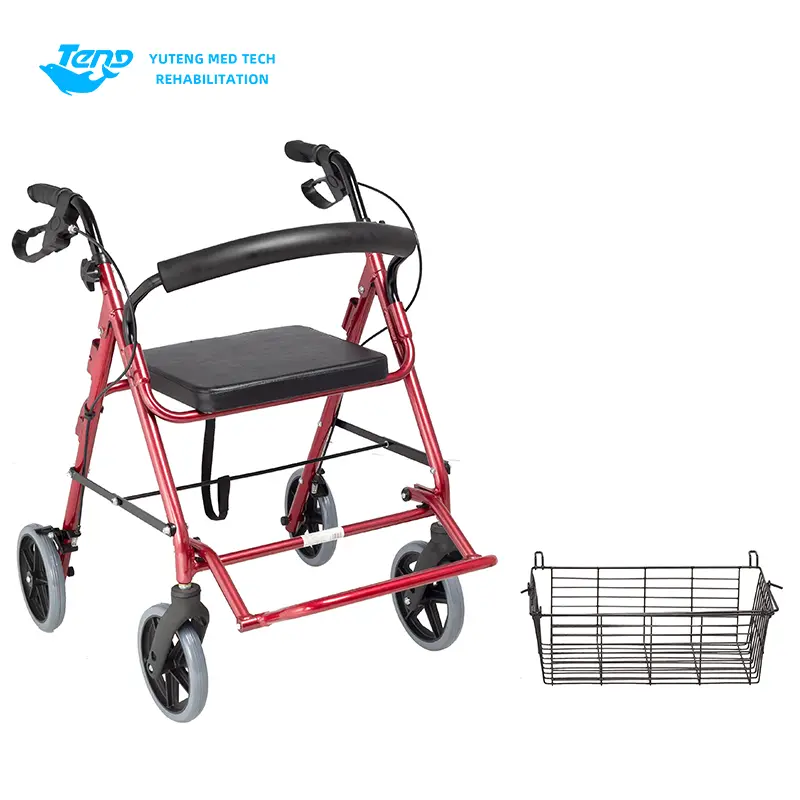

Option: Shopping bag or Basket

lightweight rollator walker is a walking aid designed for the elderly, disabled or recovering patients, whose main features are that it is lightweight and easy to carry, while providing stability and safety. It is usually equipped with wheels, a handle and a seat, which allows the user to move the wheels by hand power while the seat provides a resting function.

Parameter (Specification)

Feature And Application

Its structural characteristics are as follows:

1. The walking aid consists of wheels, frame, seat plate, backrest tube, braking system, foot pedal and so on. It has the characteristics of lightweight and flexible. It is suitable for the elderly and people with walking difficulties to use it as an unpowered walking aid for walking and shopping.

2. The main frame is made of φ25.4*1.4 thick aluminium alloy tube with baking paint on the surface. The seat cushion is made of wood board and foam with PVC cover, and the armrest tube is φ22x2.0 thick with 6 height adjustment holes. Plastic front fork, 8 inch front and rear wheels. Plastic front fork, front wheel and rear wheel 8 inches, with movable footrest which can be uplifted and folded. The backrest tube can be installed in front and rear respectively, convenient to use. Brake can be locked, overall safety and reliability.

(1)  Slope parking performance ≥7°, travelling braking performance ≤0.5m.

(2） All wheels must land smoothly.

(3） Static stability: longitudinal ≥15°, lateral ≥6°.

(4） Skidding offset ≤350㎜.

(5） Minimum turning radius≤0.65m

(6） Minimum switching width ≤1.5m

Details
